System Description

SYSTEM

LI-ION BATTERY CHARGE CONTROL : System Description


CONTROL OUTLINE

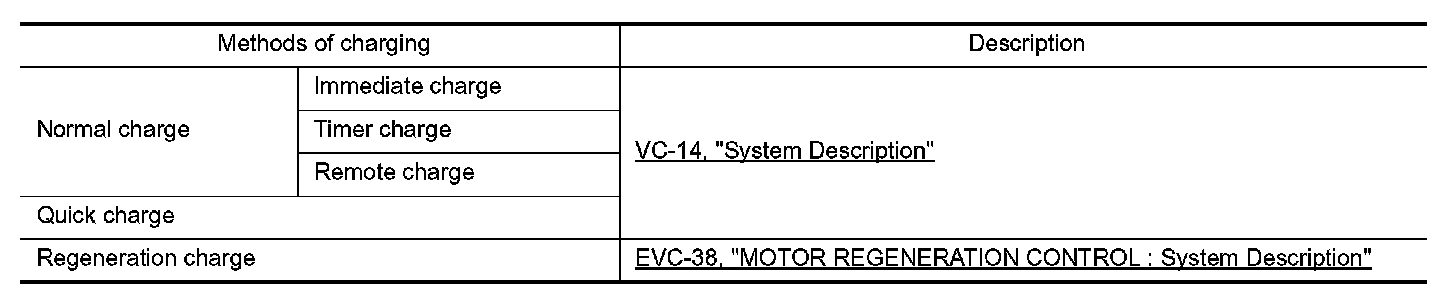

VCM activates the EV system by connecting the charging connector, performing remote control, or using the built-in timer to start charging to the Li-ion battery. The following charge modes are available.






CAUTION:
The cooling fan may operate while charging even when the power switch is OFF, so keep your hands away from the cooling fan.
NOTE:
Li-ion battery charge does not start when the power switch is ON. When it is required to charge with the power switch ON, start charging before turning ON the power switch.
