Scan Tool Testing and Procedures

DIAGNOSIS SYSTEM (ON-BOARD CHARGER)

CONSULT Function


FUNCTION







SELF-DIAG RESULTS MODE

Self Diagnostic Item
IGN Counter
IGN counter is displayed in Freeze Frame Data (FFD). It displays the number of operations of power switch from OFF to ON after DTC recovery to normal.
- CAN malfunction (U1000)
- The number is 0 when a malfunction is detected now.
- The displayed number counts up at each operation of power switch from OFF to ON after recovery to normal, such as 1
2 3...38 39.
- The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.
- Other than CAN malfunction (Other than U1000)
- The number is 0 when a malfunction is detected now.
- The displayed number counts up at each operation of power switch from OFF to ON after recovery to normal, such as 1
2 3...254 255.
- The number is fixed to 255 until the self-diagnosis results are erased if it is over 255.
Freeze Frame Data
The Freeze Frame Data shows the status of the vehicle when the DTC is detected and is useful for recreating the status when the malfunction occurred.

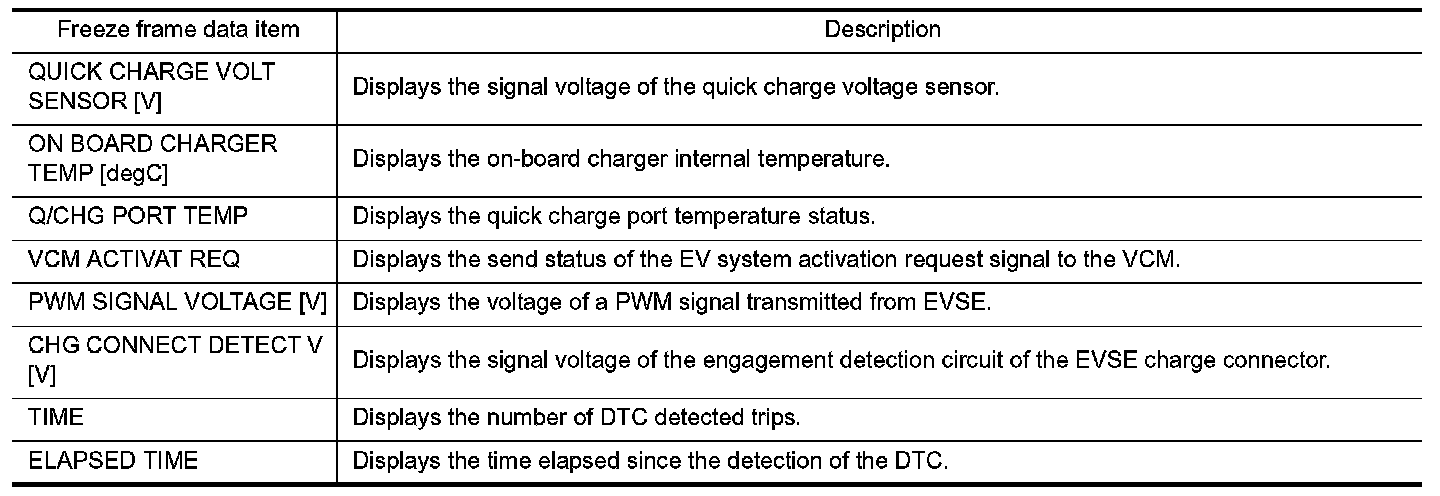

Freeze Frame Data Item List






DATA MONITOR MODE

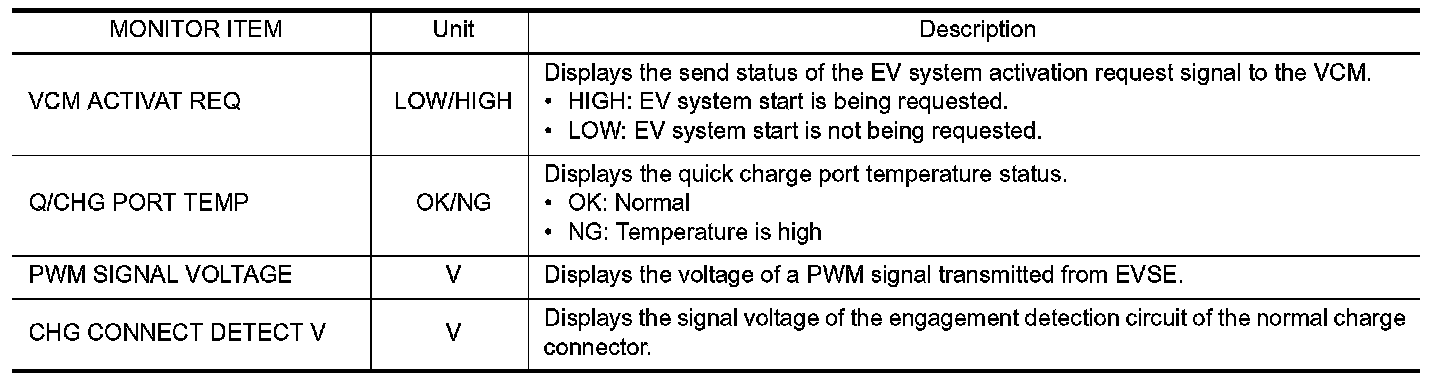

Monitored Item
