Immediate Charging Switch

IMMEDIATE CHARGING SWITCH

Diagnosis Procedure


1. CHECK IMMEDIATE CHARGING SWITCH ILLUMINATION FUNCTION

1.Turn power switch ON.
2.Turn ON the headlamp.
3.Check that the immediate charging switch illumination lights up.
Is the inspection result normal?
YES- GO TO 6.
NO- GO TO 2.

2. CHECK IMMEDIATE CHARGING SWITCH ILLUMINATION POWER SUPPLY

Check the voltage between immediate charging switch and ground.





Is the inspection result normal?
YES- GO TO 5.
NO- GO TO 3.

3. CHECK FUSE

1.Turn power switch OFF.
2.Turn OFF the headlamp.
3.Pull out #47 fuse.
4.Check that the fuse is not fusing.
Is the inspection result normal?
YES- GO TO 4.
NO- Replace the fuse after repair the applicable circuit.

4. CHECK IMMEDIATE CHARGING SWITCH ILLUMINATION POWER SUPPLY CIRCUIT

1.Disconnect immediate charging switch harness connector.

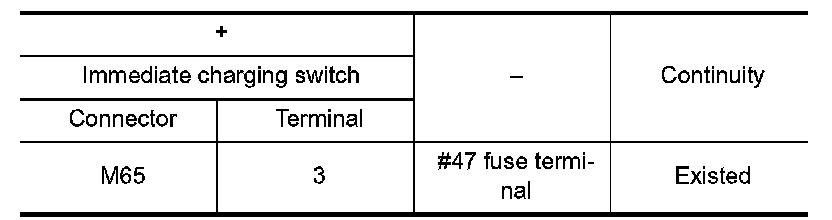

2.Check the continuity between immediate charging switch harness connector and fuse harness connector.





Is the inspection result normal?
YES- Check power supply circuit.
NO- Repair or replace error-detected parts.

5. CHECK IMMEDIATE CHARGING SWITCH GROUND CIRCUIT

1.Turn power switch OFF.
2.Turn OFF the headlamp.
3.Disconnect immediate charging switch harness connector.

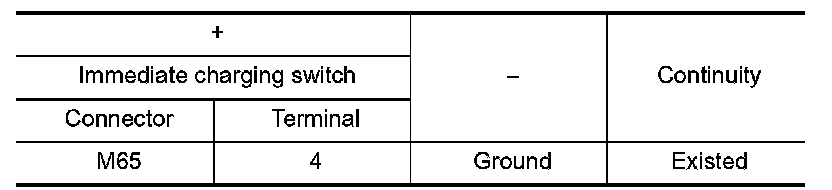

4.Check the continuity between immediate charging switch harness connector and ground.





Is the inspection result normal?
YES- Replace immediate switch. Refer to "Removal and Installation" Service and Repair.
NO- Repair or replace error-detected parts.

6. CHECK IMMEDIATE CHARGING SWITCH POWER SUPPLY

1.Turn power switch OFF.
2.Turn OFF the headlamp.
3.Disconnect immediate charging switch harness connector.
4.Check the voltage between immediate charging switch harness connector and ground.





Is the inspection result normal?
YES- GO TO 9.
NO- GO TO 7.

7. CHECK FUSE

1.Pull out #13 fuse.
2.Check that the fuse is not fusing.
Is the inspection result normal?
YES- GO TO 8.
NO- Replace the fuse after repair the applicable circuit.

8. CHECK IMMEDIATE CHARGING SWITCH POWER SUPPLY CIRCUIT

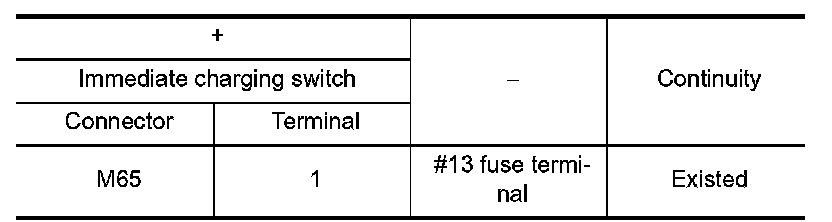

Check the continuity between immediate charging switch harness connector and fuse harness connector.





Is the inspection result normal?
YES- Check power supply circuit.
NO- Repair or replace error-detected parts.

9. CHECK IMMEDIATE CHARGING SWITCH SIGNAL CIRCUIT

1.Disconnect VCM harness connector.
2.Check the continuity between immediate charging switch harness connector and VCM harness connector.





3.Also check harness for short to ground and short to power.
Is the inspection result normal?
YES- GO TO 10.
NO- Repair or replace error-detected parts.

10. CHECK IMMEDIATE CHARGING SWITCH

Perform component inspection. Refer to "Component Inspection (Immediate Charging Switch)" .
Is the inspection result normal?
YES- INSPECTION END
NO- Replace immediate charging switch. Refer to "Removal and Installation" Service and Repair.


Component Inspection (Immediate Charging Switch)


1. CHECK IMMEDIATE CHARGING SWITCH

1.Turn power switch OFF.
2.Disconnect immediate charging switch harness connector.
3.Check the continuity between immediate charging switch terminals under the following conditions.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace immediate charging switch. Refer to "Removal and Installation" Service and Repair.
