Electric Parking Brake Control Module

ELECTRIC PARKING BRAKE CONTROL MODULE

Fail-Safe

- The master warning lamp (yellow) turns ON when a malfunction with the system occurs.

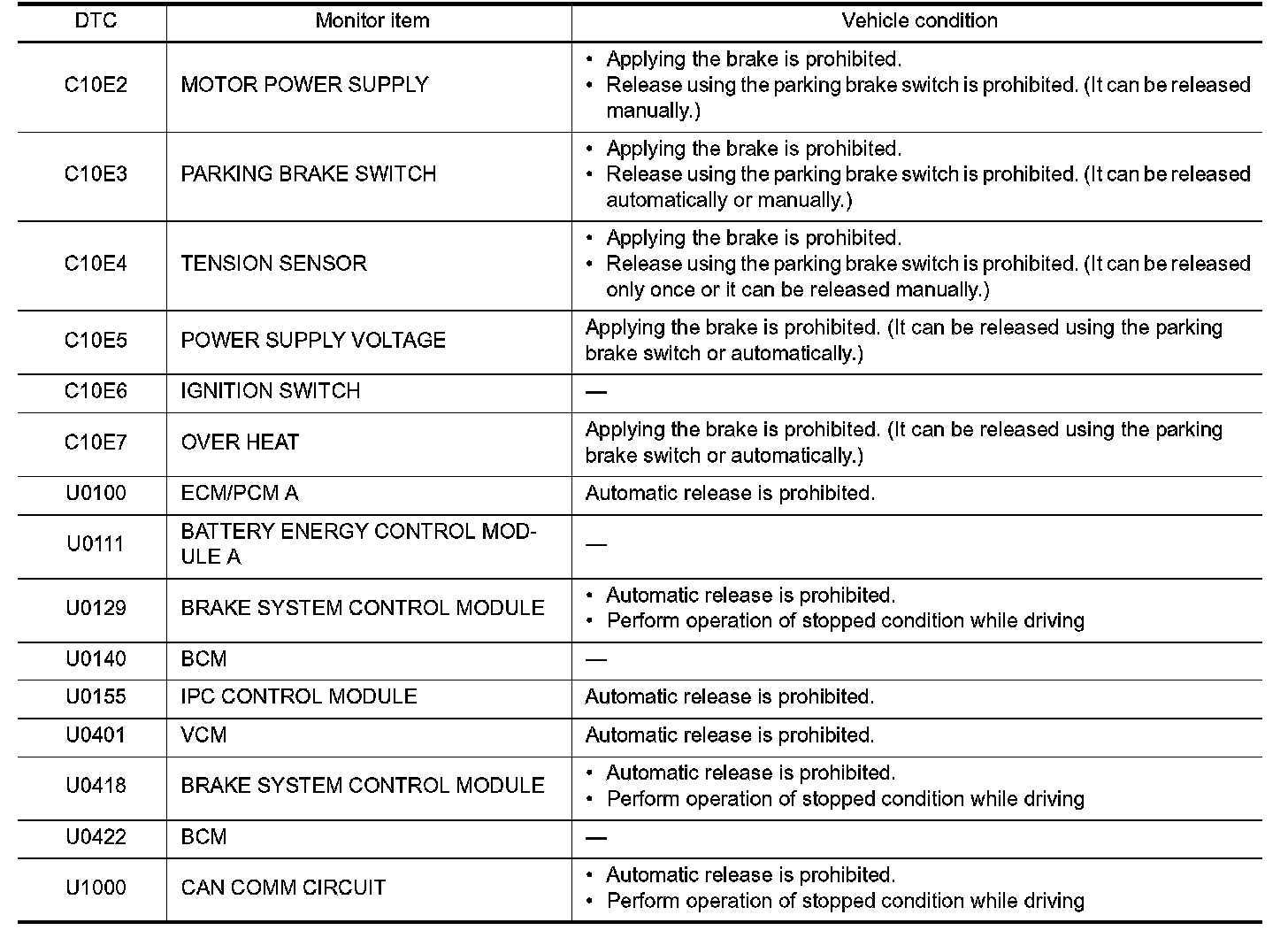

- When parking brake switch is pulled/pushed during system malfunction, electric parking brake indicator lamp blinks and master warning lamp (red) turns ON when electric parking brake cannot be operated. It restricts braking and release operations of electric parking brake.
NOTE:
The parking brake can be manually released.
