PARKING BRAKE SHOE

Inspection and Adjustment


INSPECTION AFTER REMOVAL

Lining Thickness Inspection

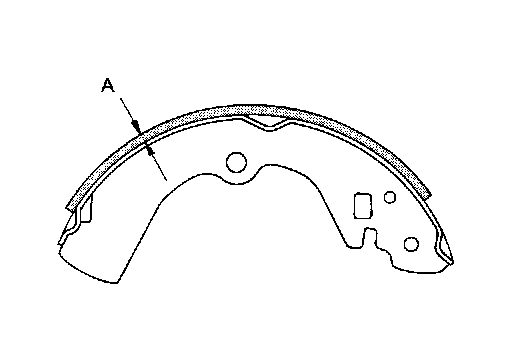

- Check thickness (A) of lining.
A: Refer to "Parking Drum Brake" [1][2]Parking Brake Control.
Drum Inner Diameter Inspection

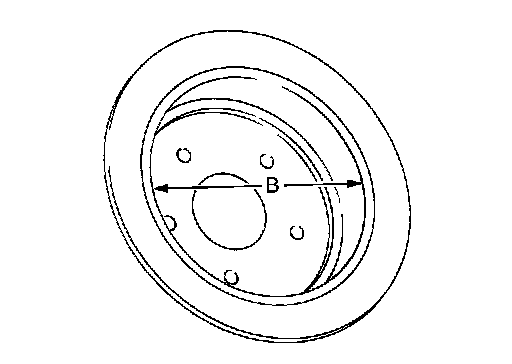

- Check inner diameter (B) of drum.
B: Refer to "Parking Drum Brake" [1][2]Parking Brake Control.
Other Inspections
Check the following items, and replace the parts if necessary.
- Lining for excessive wear, damage, and peeling.
- Brake shoe sliding surface for excessive wear and damage.
- Anti-rattle pin for excessive wear, damage and rust.
- Return spring and spring for settling, excessive wear, damage, and rust.
- Adjuster for smoothness.
- Toggle lever and brake strut for excessive wear, damage and rust.
- Visually check inside of the drum for excessive wear, cracks, and damage with a pair of vernier calipers.

ADJUSTMENT AFTER INSTALLATION

1.Rotate the disc rotor to check that there is no drag. Install the plug. If any drag is found, follow the procedure described below.
a.Adjust parking brake stroke again.
b.Check rear disc brake. Refer to "BRAKE CALIPER ASSEMBLY : Inspection" Inspection.
2.Adjust the parking brake shoe. Refer to "Adjustment" Adjustments.
3.Perform parking brake actuator 0 point learning. Refer to "Work Procedure" Work Procedure.
4.Pull the parking brake switch and confirm the electric parking brake indicator in combination meter turns
ON.
5.Push parking brake switch to release electric parking brake.
6.Check that the electric parking brake indicator in combination meter turns OFF.
