Rear

HEATED SEAT SWITCH

REAR : Removal and Installation


REMOVAL

1.Remove seatback upper finisher from the passenger seat. Refer to "SEATBACK : Disassembly and Assembly" Service and Repair.

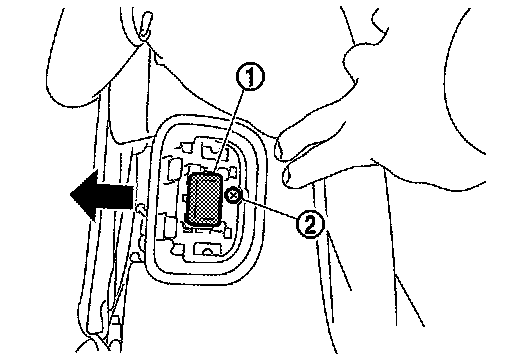

2.Disconnect rear heated seat switch (1) connector.
3.Remove switch finisher mounting screw (2).
4.Pull switch finisher in the direction of the arrow as shown in the figure, to remove it from seatback.





5.Remove rear heated seat switch (1) from switch finisher.


INSTALLATION

Install on the reverse order of removal.
