Seat Cushion

REAR SEAT

SEAT CUSHION : Removal and Installation


REMOVAL

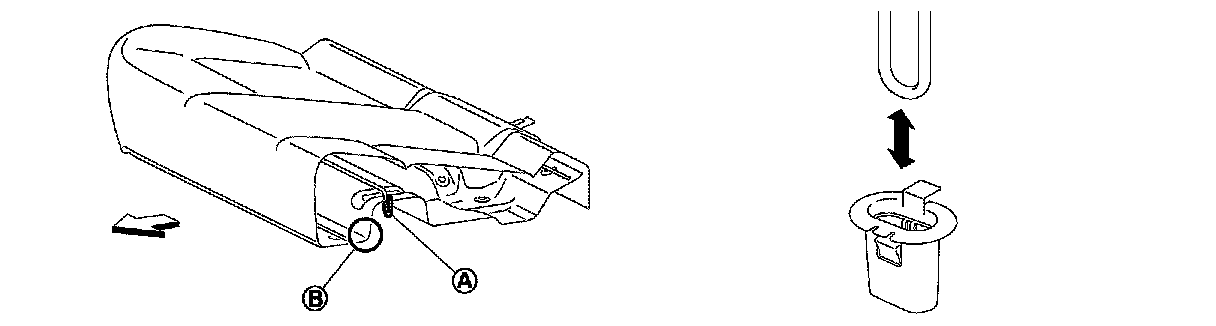

1.Lift up seat cushion at a close position (B) of engaging portion (A) and disengage seat cushion hook.







CAUTION:
Seat cushion wire close to engaging portion deforms, if excessive force is applied to seat cushion front end when removing seat cushion.
To avoid the deformation, be careful to remove seat cushion while applying force to close position, as much as possible, of engaging portion.
2.Pull out seat belt buckle from seat cushion.
3.Lift up seat cushion (1), and then disengage heated seat harness clip (A) and disconnect heated seat harness connector (B) (with heated seat only).






4.Remove seat cushion from the vehicle.

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
