Passenger Side Door Mirror Defogger

PASSENGER SIDE DOOR MIRROR DEFOGGER

Component Function Check


1. CHECK PASSENGER SIDE DOOR MIRROR DEFOGGER

1.Select "REAR DEFOGGER" in "ACTIVE TEST" of "IPDM E/R" using CONSULT.
2.Touch "ON".
3.Check that the passenger side door mirror glass is getting warmer.
Is the inspection result normal?
YES- Passenger side door mirror defogger is OK.
NO- Refer to "Diagnosis Procedure" .


Diagnosis Procedure


1. CHECK DOOR MIRROR DEFOGGER CIRCUIT

1.Turn power switch OFF.
2.Disconnect IPDM E/R connector and door mirror (passenger side) connector.
3.Check continuity between IPDM E/R harness connector and door mirror (passenger side) harness connector.





Is the inspection result normal?
YES- GO TO 2.
NO- Repair or replace harness.

2. CHECK GROUND CIRCUIT

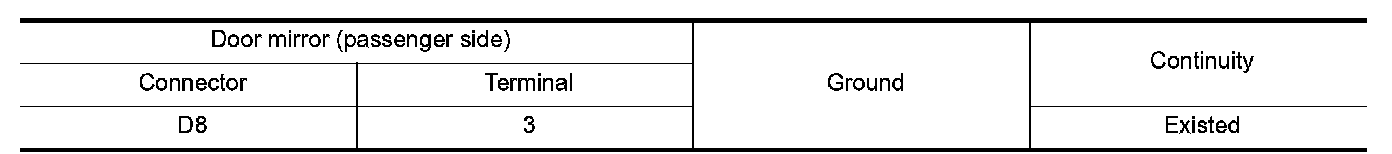

Check continuity between door mirror (passenger side) harness connector and ground.





Is the inspection result normal?
YES- Replace glass mirror (passenger side).
NO- Repair or replace harness.
