Glass Mirror

OUTSIDE MIRROR

GLASS MIRROR : Removal and Installation


REMOVAL

1.Place the glass mirror upward.
2.Remove glass mirror.

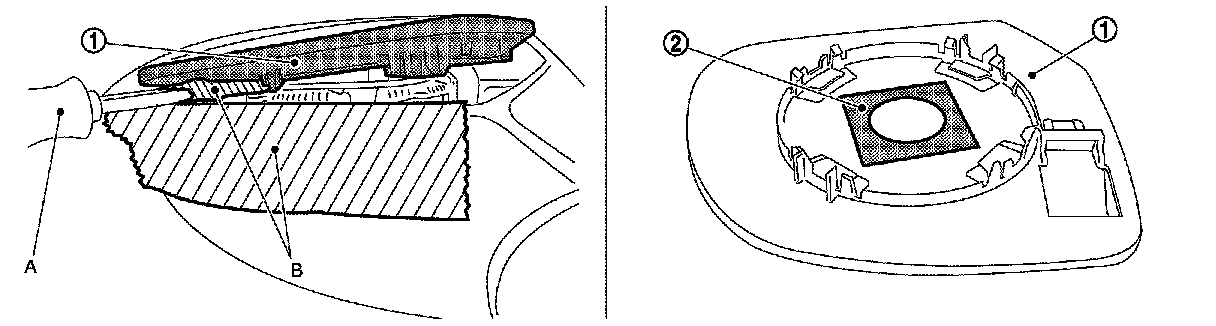

a.Put a strip of protective tape (B) on mirror body.
b.Insert a remover tool (A) into the recess at lower side between glass mirror (1) and actuator, and push up pawls to remove glass mirror lower side.
NOTE:
Insert a remover tool into recesses, and push up while rotating (twisting) to make work easier.
c.Remove the glass mirror fixing butyl-tape (2) with a cutting tool and remove glass mirror from mirror body.
d.Disconnect the heater harness connectors (if equipped).

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:
After installation, visually check that pawls are securely engaged.
