Door Mirror Cover

OUTSIDE MIRROR

DOOR MIRROR COVER : Removal and Installation


REMOVAL

1.Remove the glass mirror. Refer to "GLASS MIRROR : Removal and Installation" Glass Mirror.
2.Remove door mirror actuator.

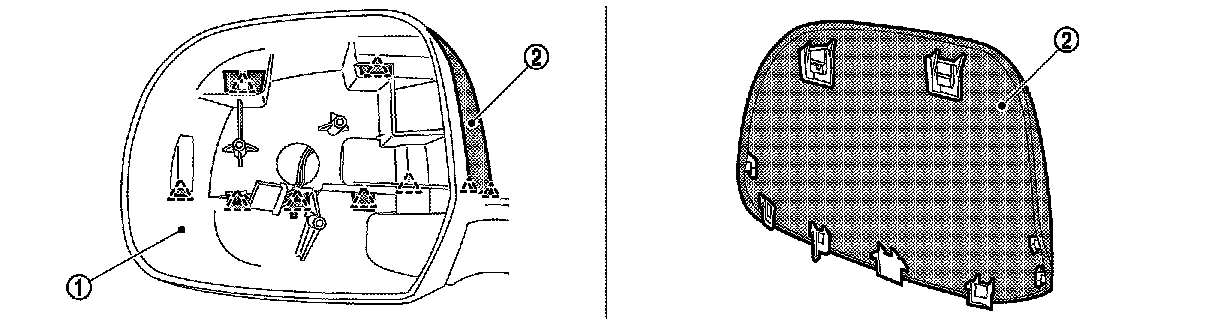

3.Disengage door mirror cover (2) fixing pawls with a remover tool.






4.Remove door mirror cover from door mirror body (1).

INSTALLATION

Note the following item and then install in the reverse order of removal.

CAUTION:
After installation, visually check that pawls are securely engaged.
