Removal And Installation

OUTSIDE MIRROR

DOOR MIRROR ASSEMBLY : Removal and Installation


CAUTION:
When removing, always use a remover tool that is made of plastic to prevent damage to the parts.

REMOVAL

1.Remove front door finisher. Refer to "Removal and Installation" Removal And Installation.
2.Remove door mirror corner cover.






a.Insert a remover tool (A) into the hole as shown in the figure to disengage the fixing pawl.
b.Remove door mirror corner cover from door panel.
3.Remove partially front door sealing screen.

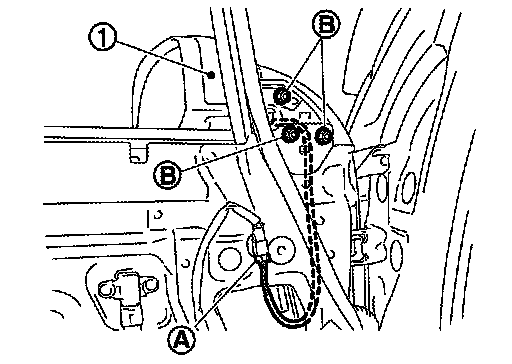

4.Disconnect door mirror harness connector (A).
5.Remove door mirror mounting nuts (B).
6.Remove door mirror harness connector from door panel as shown in the figure, and then remove door mirror assembly (1).

INSTALLATION

Install in the reverse order of removal.
