Power Door Lock Actuator: Description and Operation

COMPONENT PARTS

Door Lock and Unlock Switch

- Door lock and unlock switch transmits door lock/unlock signal operation to BCM.

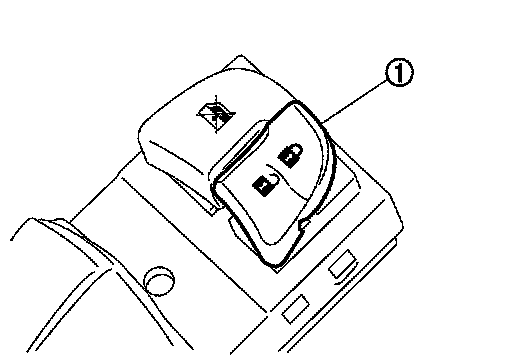

- Door lock and unlock switch (1) is Integrated in the power window main switch and front power window switch (passenger side).
