Intelligent Key

DIAGNOSIS SYSTEM (BCM)

INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)

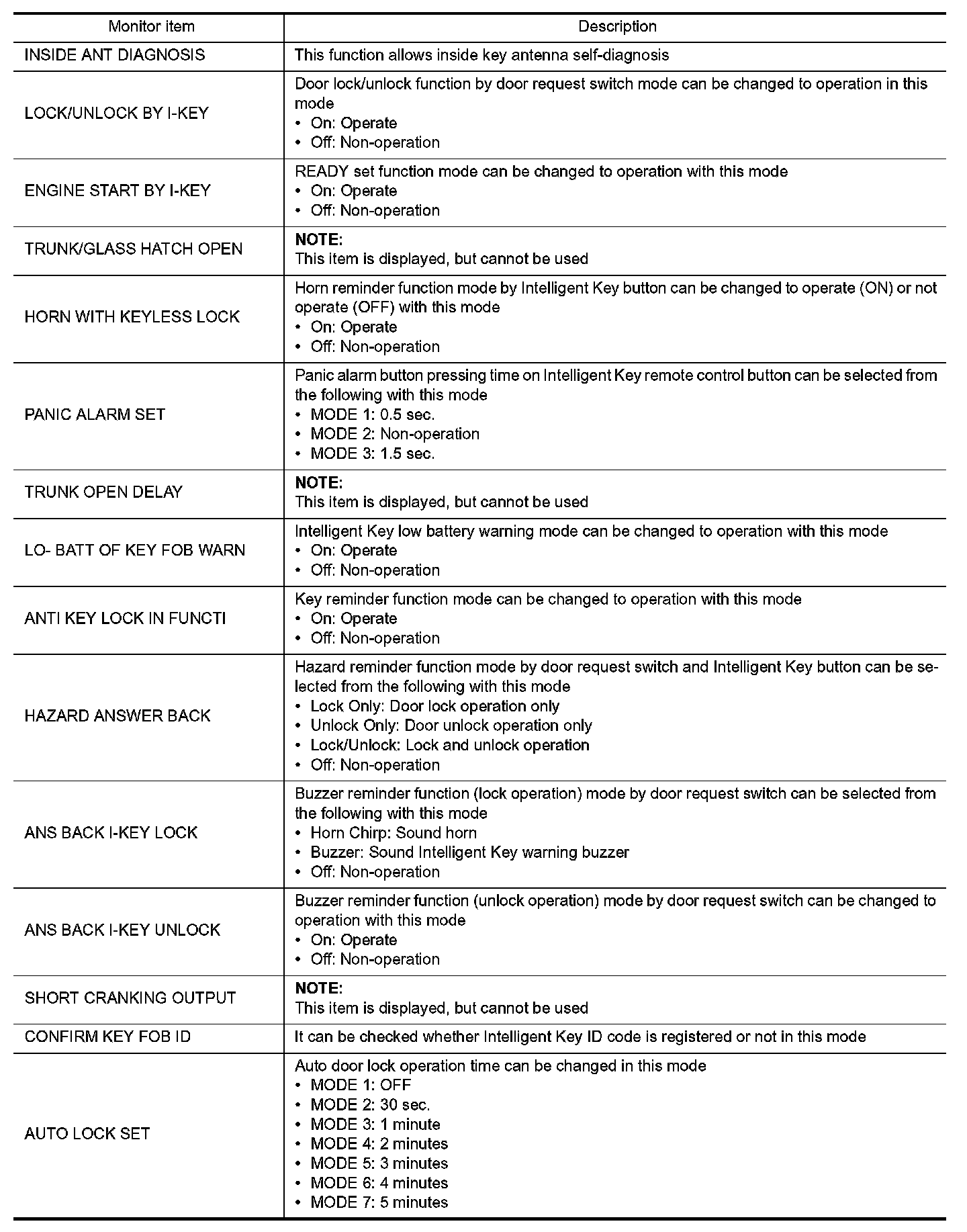

WORK SUPPORT







SELF-DIAG RESULT

Refer to "DTC Index"

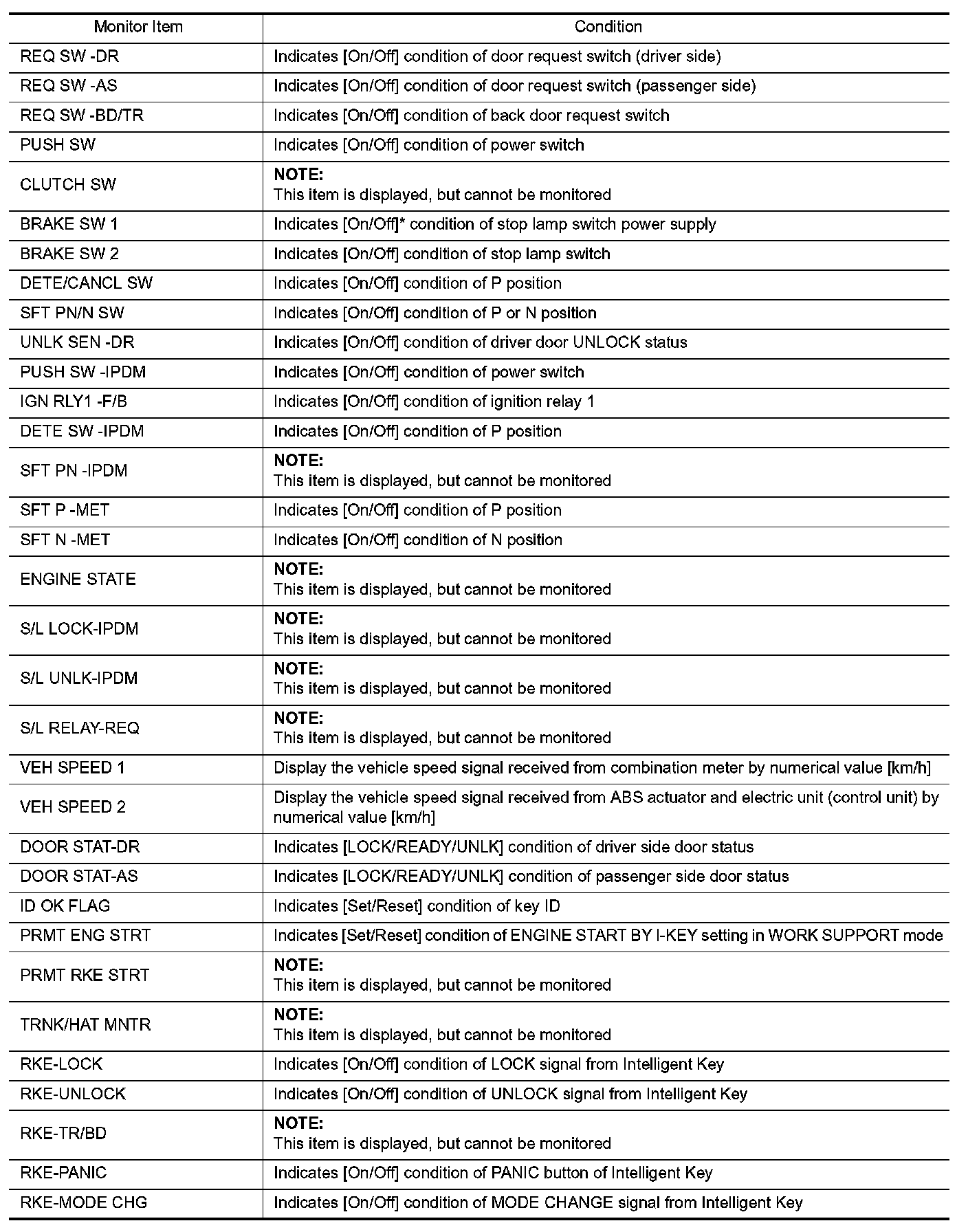

DATA MONITOR











*: OFF is displayed when brake pedal is depressed while brake switch power supply is OFF.

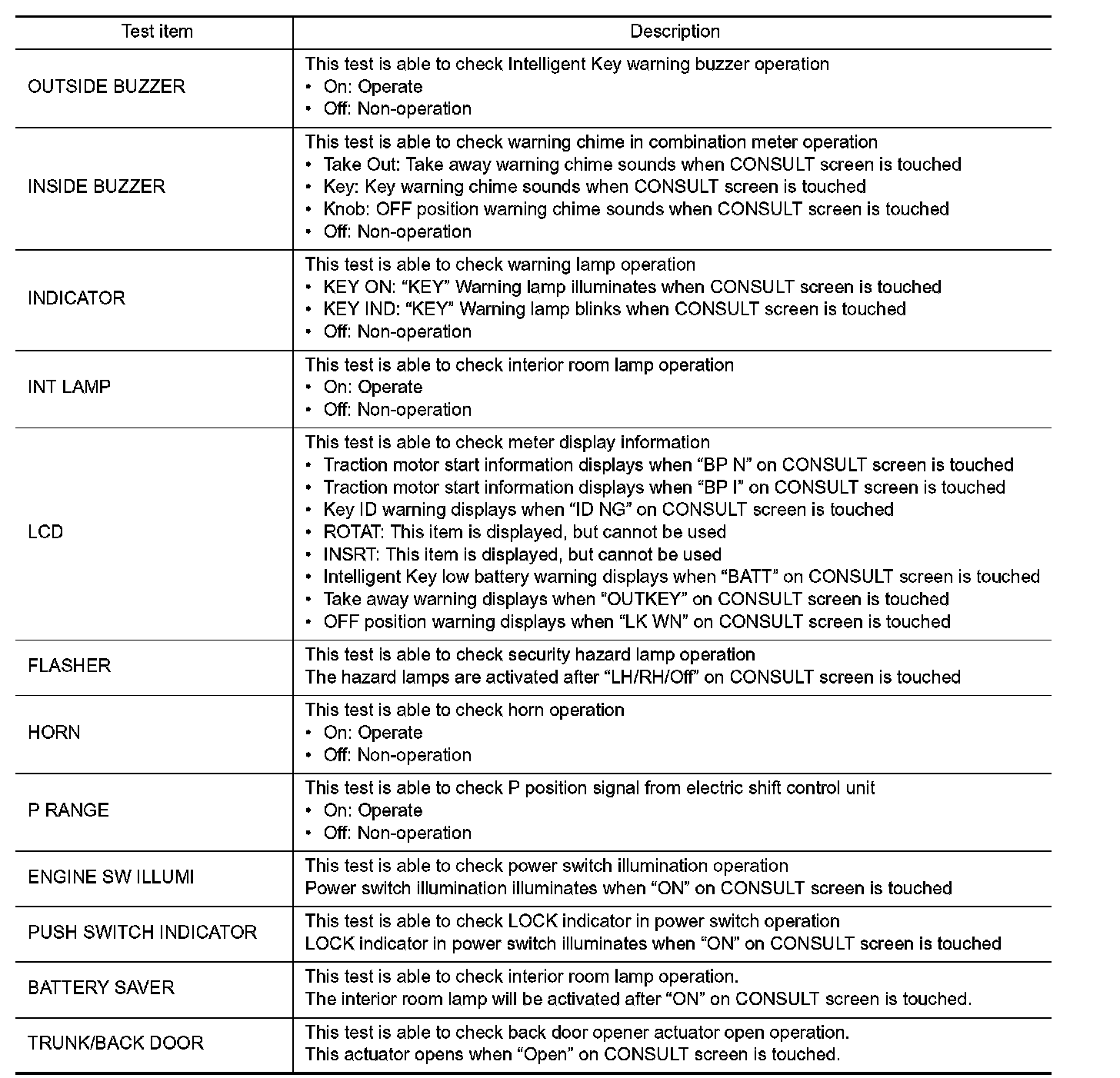

ACTIVE TEST
