Removal And Installation

FRONT DOOR LOCK

DOOR LOCK : Removal and Installation


REMOVAL

1.Remove outside handle bracket. Refer to "OUTSIDE HANDLE : Removal and Installation" Service and Repair.
2.Remove front door lower sash. Refer to "Exploded View" Exploded View.
3.Remove door lock assembly TORX bolts.
4.Disconnect door lock actuator harness connector, and then remove door lock assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:
- Never reuse TORX bolt. Always replace it with a new one when it is removed.
- Check door open/close, lock/unlock operation after installation.
- Check door lock cable is properly engaged with outside handle bracket.

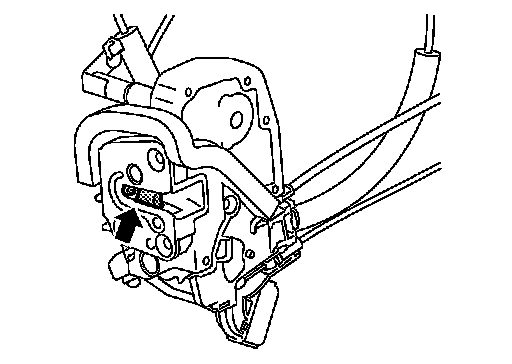

- Check door lock assembly for poor lubrication. Apply body grease to door lock if necessary.
