Instrument Side Panel

BODY SIDE TRIM

INSTRUMENT SIDE PANEL : Removal and Installation


CAUTION:
- When removing, always use a remover tool that is made of plastic to prevent damage to the parts.
- Never damage the body.

REMOVAL






1.Apply protective tape (A) on the parts to protect it from damage.

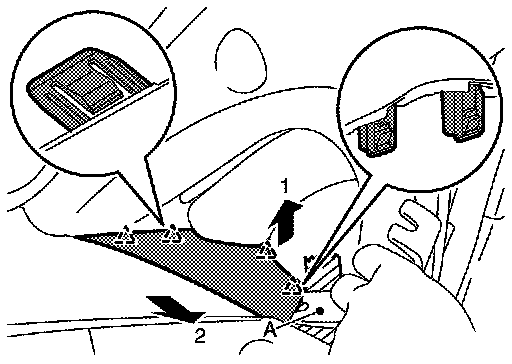

2.Disengage instrument side panel fixing pawls with a remover tool (A) according to the numerical order 1
2 as shown in the figure, and then remove instrument side panel.


INSTALLATION

Install in the reverse order of removal.
