Dash Side Finisher

BODY SIDE TRIM

DASH SIDE FINISHER : Removal and Installation


CAUTION:
Never damage the body.

REMOVAL

1.Remove front kicking plate inner. Refer to "KICKING PLATE INNER : Removal and Installation" Kicking Plate Inner.
2.Remove front body side welt. Refer to "BODY SIDE WELT : Removal and Installation" Body Side Welt.
3.Remove dash side finisher.





a.Disengage stud bolt (A).

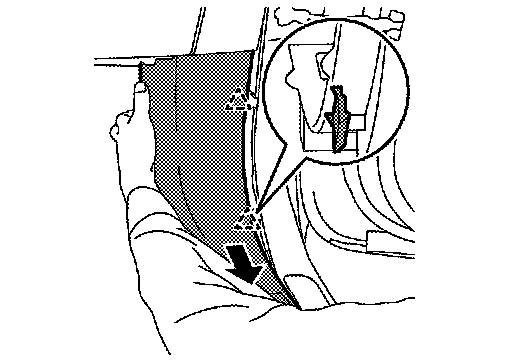

b.Pull back dash side finisher, and then disengage dash side finisher fixing pawls, and then remove dash side finisher.

CAUTION:
Pull dash side finisher straight toward vehicle rear. Otherwise, pawls may be damaged if front end of dash side finisher opens toward vehicle inside.


INSTALLATION

Install in the reverse order of removal.
