Removal And Installation

CENTER CONSOLE ASSEMBLY

Removal and Installation

CAUTION:
To prevent damage to the parts, when removing, always use a remover tool that is made of plastic.

REMOVAL

1.Remove instrument lower center cover.

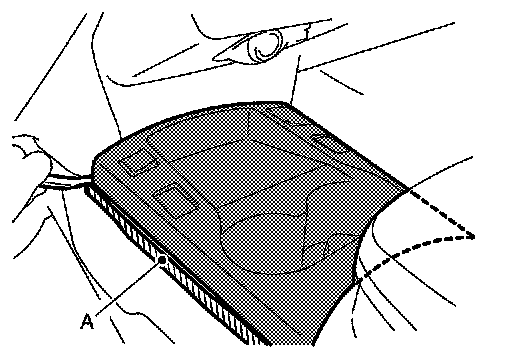

1.Apply protective tape (A) for a console finisher assembly meeting to protect it from damage.

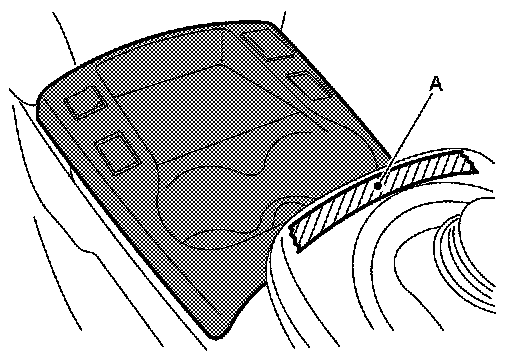

2.Apply protective tape (A) on the part to protect it from damage.

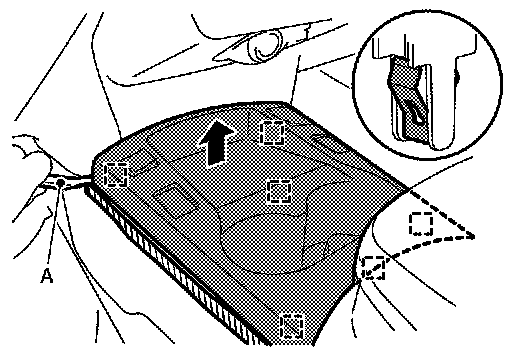

3.Insert remover tool (A) between instrument lower center cover and center console assembly to disengage the metal clips as shown in the figure.

4.Lift up instrument lower center cover, and then disconnect harness connectors.

CAUTION:
Be careful not to scratch console finisher assembly with pawl or metal clip of instrument lower center cover.

2.Remove instrument lower cover LH.

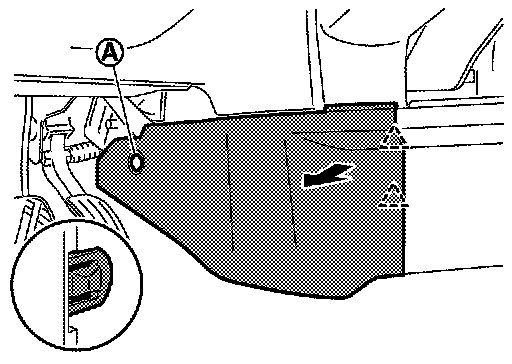

1.Remove fixing clip (A).
2.Pull the instrument lower cover LH crosswise, and disengage the pawls.

CAUTION:
Remove pawls slowly so that they are not damaged.

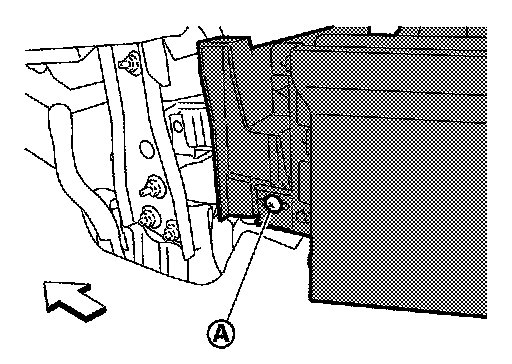

3.Remove center console assembly fixing screw (A).

4.Remove instrument lower cover RH.
1.Remove fixing clip (A).
2.Pull the instrument lower cover RH crosswise, and disengage the pawls.

CAUTION:
Remove pawls slowly so that they are not damaged.

5.Remove center console assembly fixing screw (A).

6.Remove console finisher assembly.

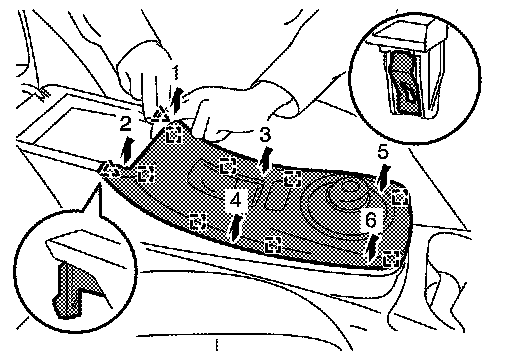

1.Lift up console finisher assembly back side, and then disengage the pawls and metal clips according to the numerical order 1
6 as shown in the figure.
2.Disconnect harness connectors.

CAUTION:
- Apply protective tape (B) on the part to protect it from damage.
- Disengage slowly so that pawls in rear end of console finisher assembly are not damaged.

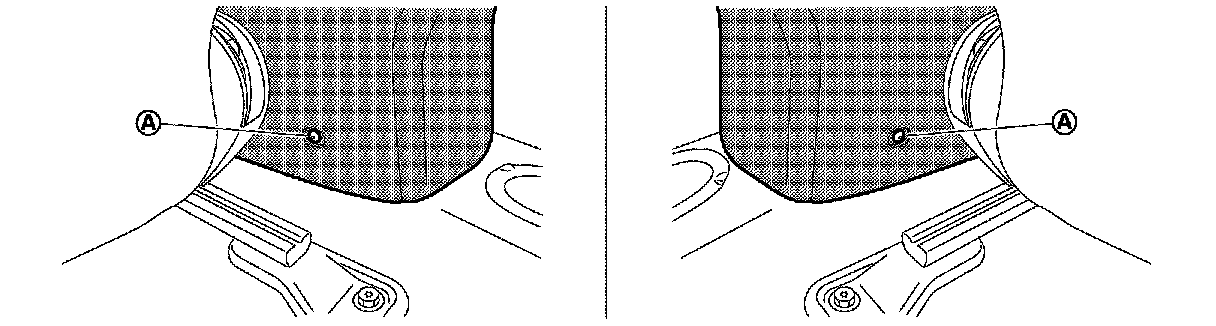

7.Remove center console assembly fixing screws (A).
8.Put front seat to frontmost position.
9.Remove center console assembly fixing screws (A).

10.Put front seat to rearmost position.
11.Remove console harness clip (A) and (B).

12.Lift up center console assembly back side, and then remove center console assembly.

INSTALLATION

Install in the reverse order of removal.
