Disassembly And Assembly

CENTER CONSOLE ASSEMBLY

Disassembly and Assembly


CAUTION:
To prevent damage to the parts, when disassembling, always use a remover tool that is made of plastic.

DISASSEMBLY

1.Remove center console assembly. Refer to "Removal and Installation" Removal And Installation.
2.Remove console mask.
1.Open the console lid assembly.

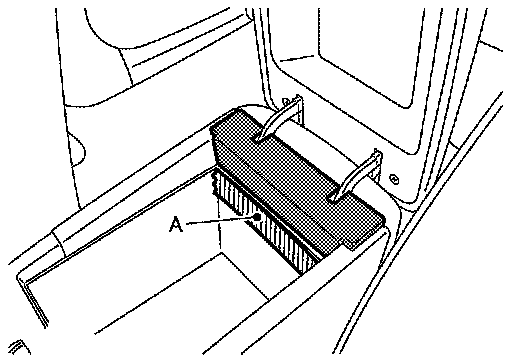

2.Apply protective tape (A) on the part to protect it from damage.

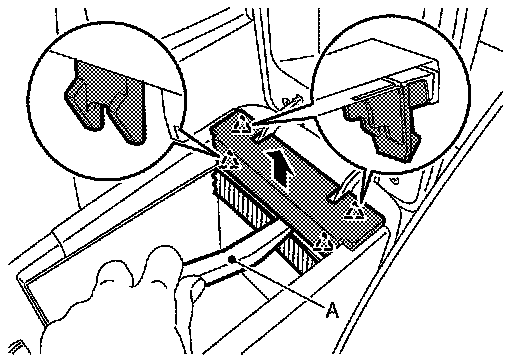

3.Insert remover tool (A) between console mask and console body assembly to disengage the pawls as shown in the figure.
4.Pull up console mask.

CAUTION:
Disengage slowly so that pawls in front end of console mask are not damaged.

3.Remove console rear finisher.





1.Remove screws (A).
2.Close the console lid assembly.

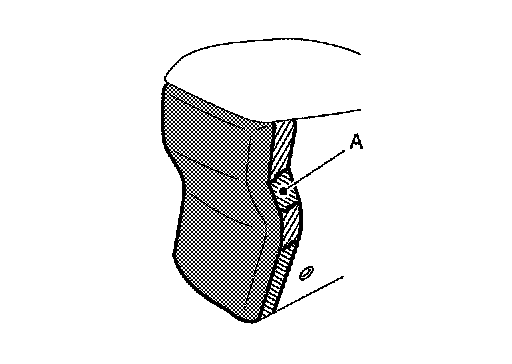

3.Apply protective tape (A) on the part to protect it from damage.





4.Insert remover tool (A) between console rear finisher and console body assembly to disengage the metal clips according to the numerical order 1
6 as shown in the figure.
5.Pull back console rear finisher.

4.Remove console lid assembly.
1.Open the console lid.

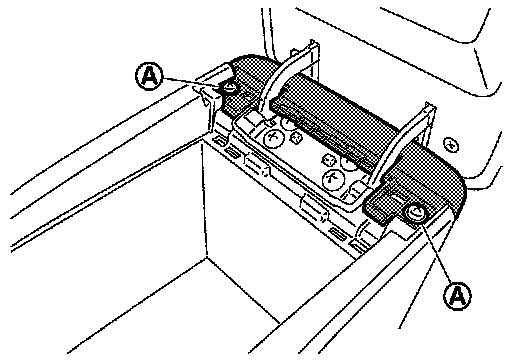

2.Remove console lid assembly fixing screws (A) and then remove console lid assembly.

ASSEMBLY

Assemble in the reverse order of disassembly.
