Hood Cover

HOOD

HOOD COVER : Removal and Installation


REMOVAL

1.Remove hood cover (LH and RH) mounting nuts.

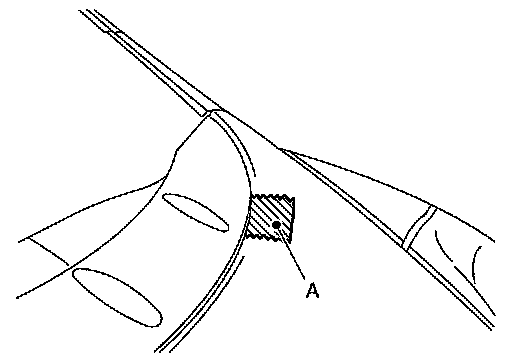

2.Apply protective tape (A) on the hood assembly to protect the painted surface from damage.





3.Disengage mounting clips using a remover tool (A), and then remove hood cover (LH and RH).

Broken circle indicates : Clip







INSTALLATION

Install in the reverse order of removal.
