Removal And Installation

HOOD LOCK

HOOD LOCK : Removal and Installation


REMOVAL

1.Remove radiator upper grille. Refer to "RADIATOR UPPER GRILLE : Removal and Installation" Radiator Upper Grille.
2.Remove hood lock assembly mounting bolts, and then remove hood lock assembly.

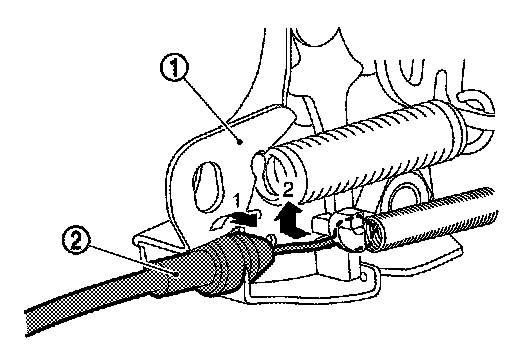

3.Disconnect hood lock control cable (2) from hood lock assembly (1).

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:
- Check that hood lock control cable is properly engaged with hood lock.
- After installation, perform hood fitting adjustment. Refer to "HOOD ASSEMBLY : Adjustment" Adjustments.
- After installation, perform hood lock control inspection. Refer to "Inspection" Inspection.
