Front Door Limiter: Service and Repair

FRONT DOOR

DOOR CHECK LINK : Removal and Installation


REMOVAL

1.Fully close the front door window.
2.Remove front door finisher. Refer to "Removal and Installation" Removal And Installation.
3.Remove sealing screen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing screen is reused.
4.Remove mounting bolt of door check link on the vehicle.
5.Remove mounting bolts of door check link on door panel.

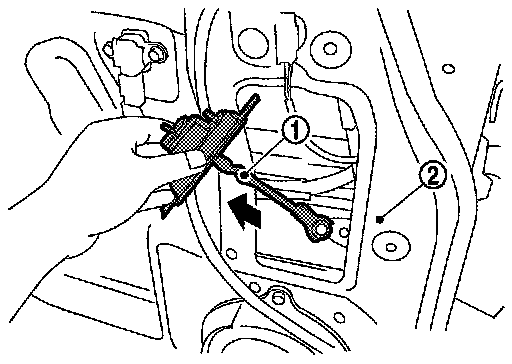

6.Take door check link (1) out from the hole of door panel (2).

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:
- Check front door open/close operation after installation.





- Check door check link rotating part for poor lubrication. If necessary, apply grease.
