Telematics System




AV CONTROL UNIT

Reference Value

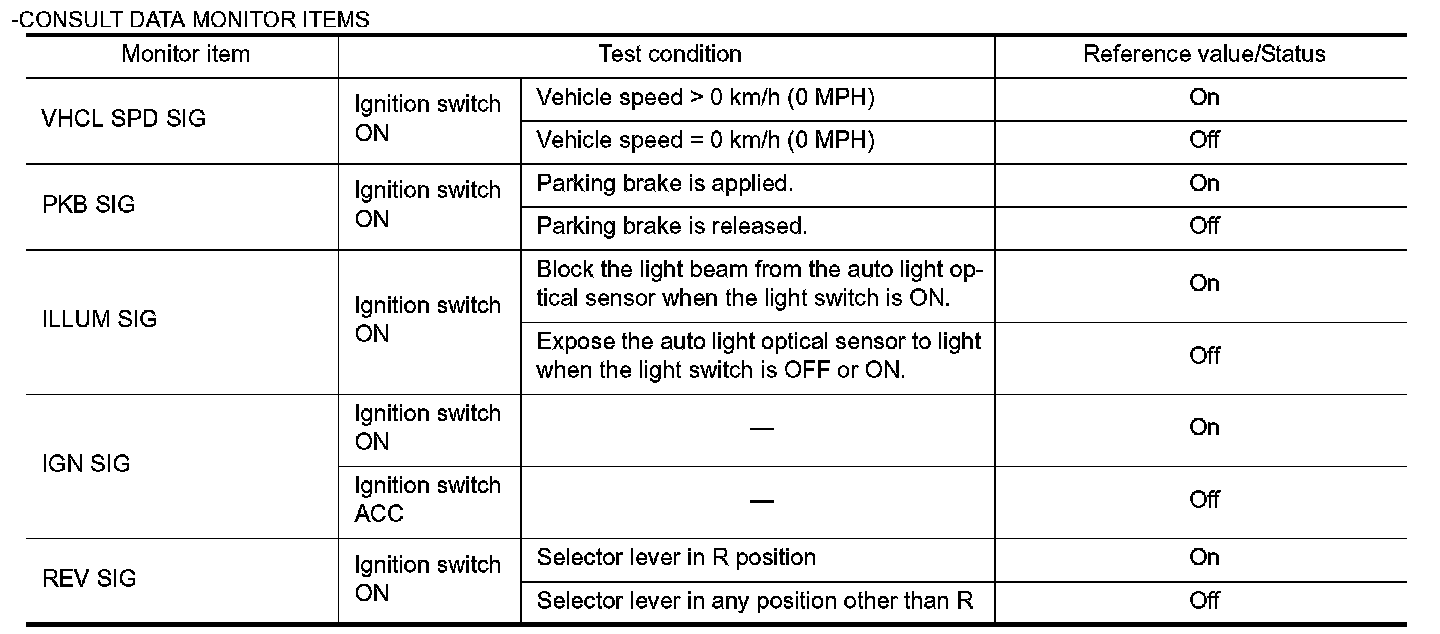

CONSULT DATA MONITOR REFERENCE VALUES

-CONSULT DATA MONITOR ITEMS

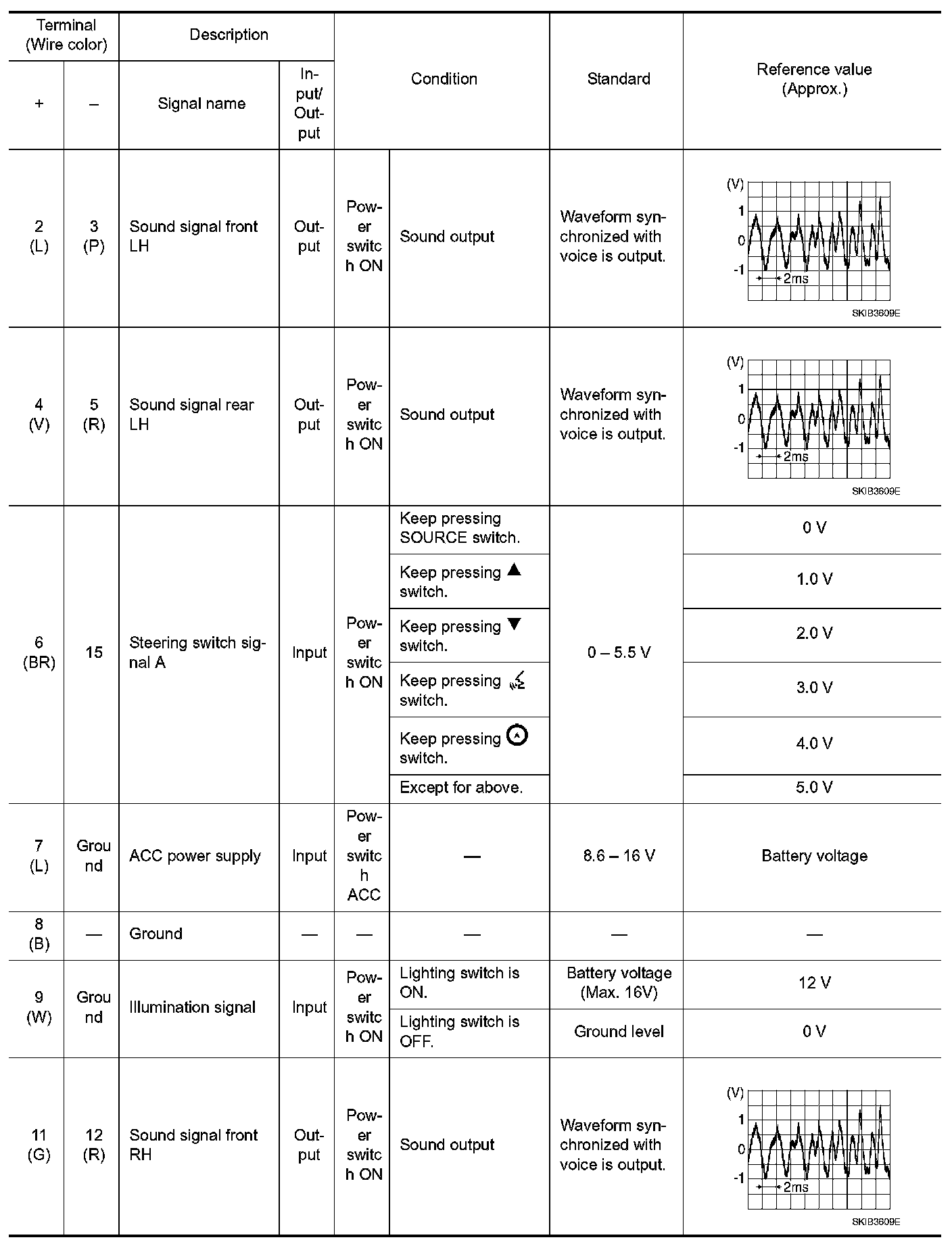

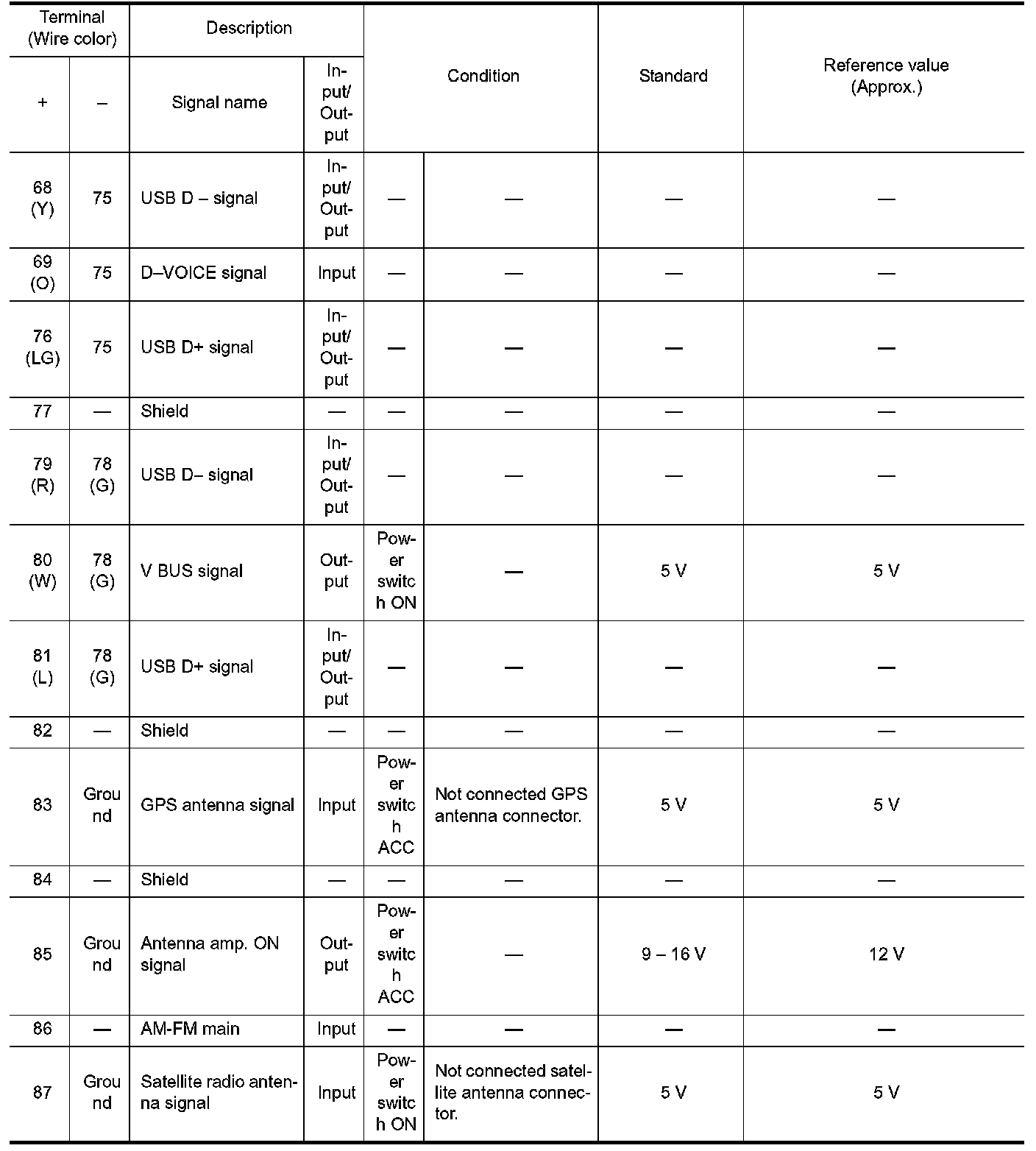

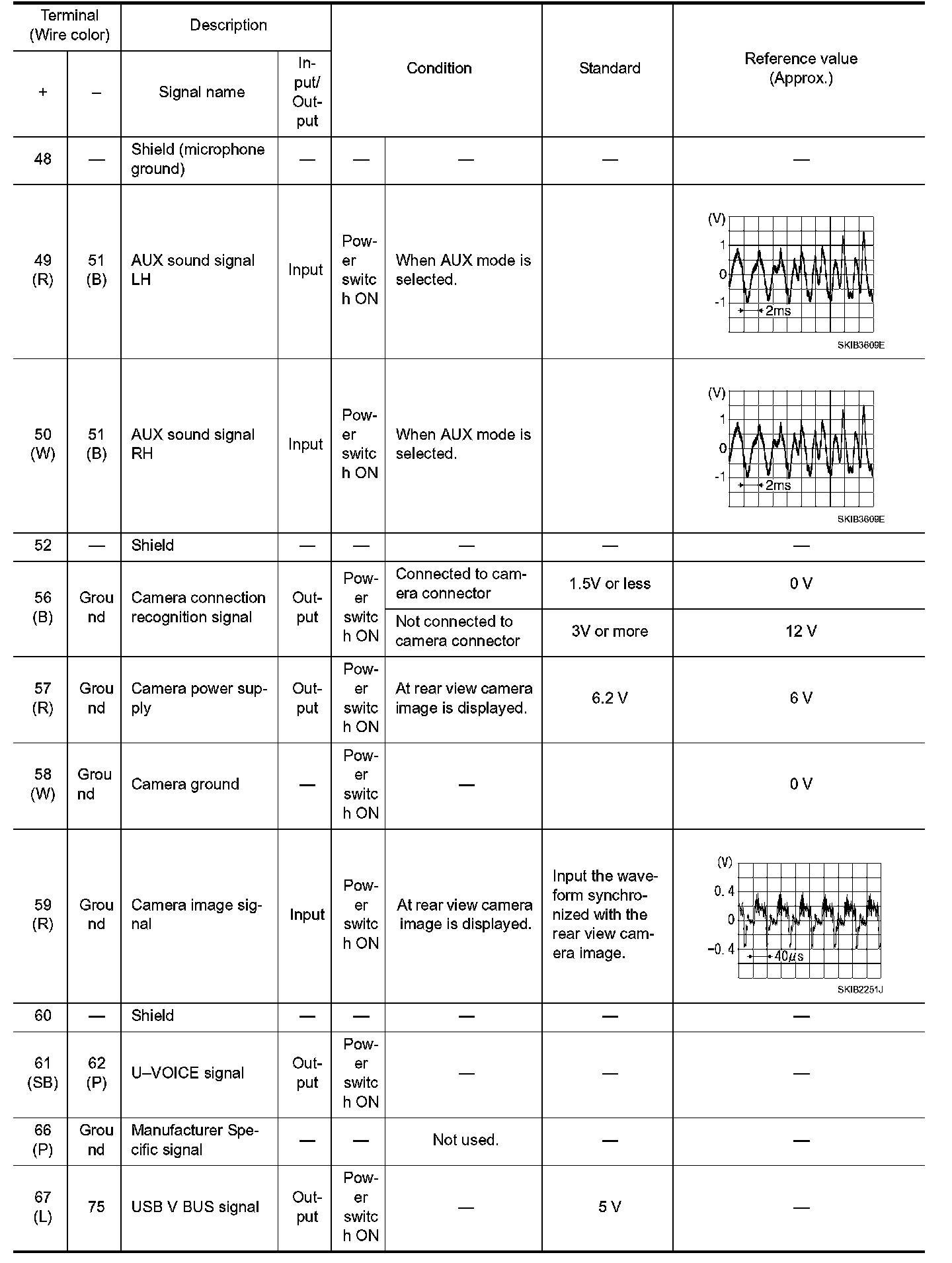

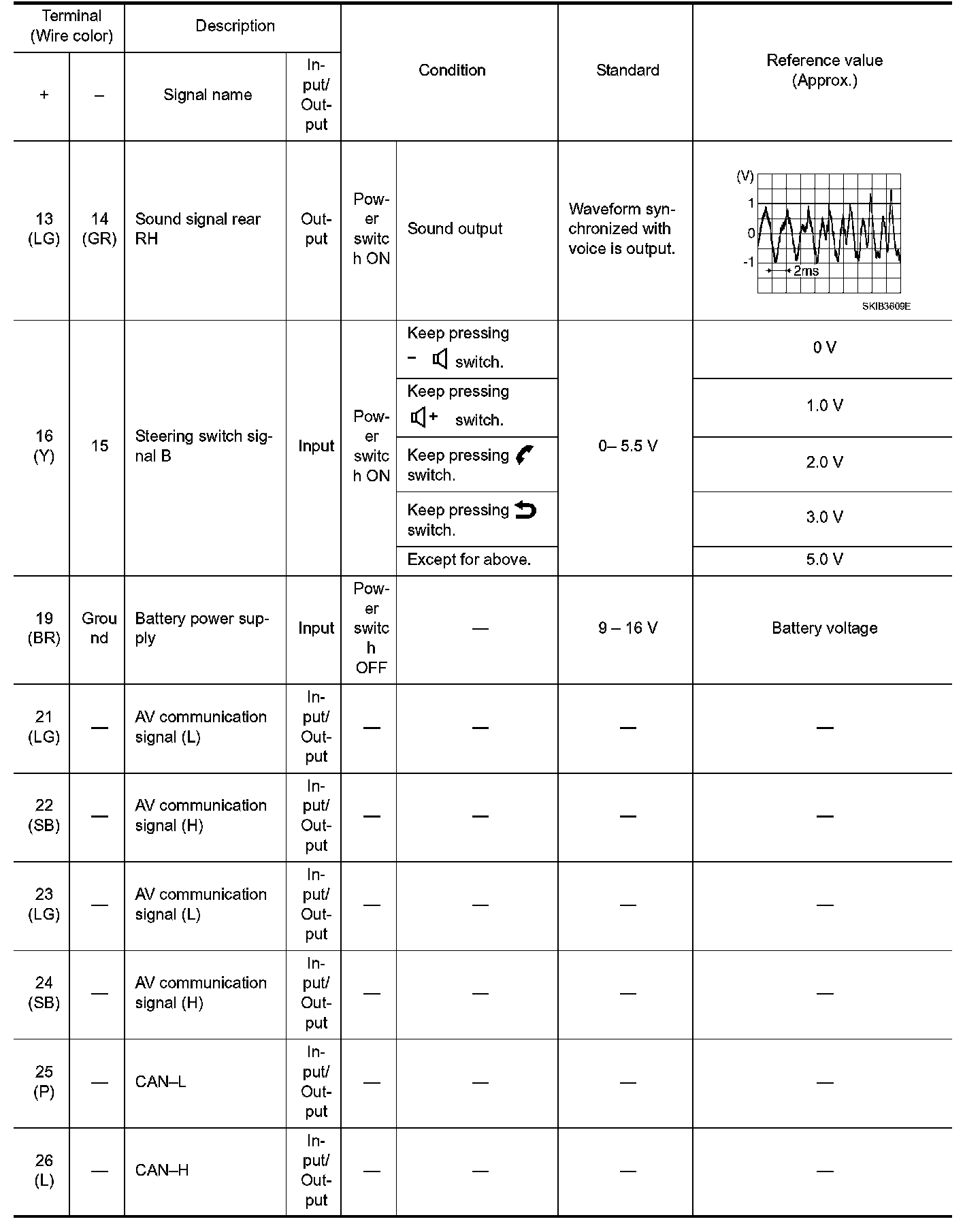

TERMINAL LAYOUT







PHYSICAL VALUES
