Speaker

COMPONENT PARTS

Speaker

The 6-speaker system is adopted.

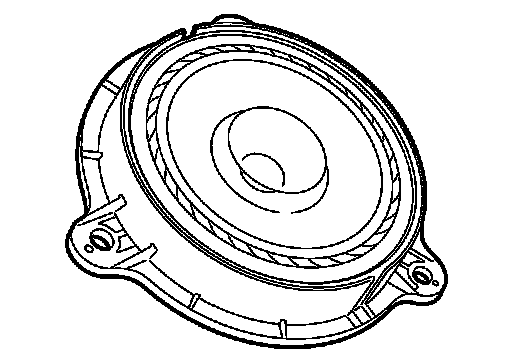

Front door speaker

-dia. 16.0 cm speaker is installed to the bottom of the front door.





- Sound signal is input from the AV control unit to output mid and low range sounds.

Maximum input : 40 W
Rated input : 20 W
Impedance : 2 Ohms

Rear door speaker

-dia. 16.0 cm speaker is installed to the bottom of the rear door.





- Sound signal is input from the AV control unit to output high, mid and low range sounds.

Maximum input : 40 W
Rated input : 20 W
Impedance : 2 Ohms

Tweeter

-dia. 3.5 cm tweeter for high-range sounds is installed in the front pillar.





- Sound signal is input from the AV control unit to output high range sounds.

Maximum input : 40 W
Rated input : 1 W
Impedance : 4 Ohms
