Radio Antenna And Antenna Feeder

COMPONENT PARTS

Radio Antenna and Antenna Feeder


RADIO ANTENNA

Antenna Rod

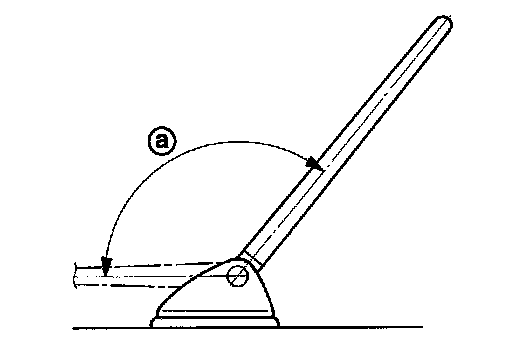

Foldable rod antenna is installed to the rear center of the roof.

a : 140�

Antenna Base
- To obtain sufficient reception sensitivity, an antenna amplifier is built into the antenna base.
- Power of the antenna amplifier is supplied from the AV control unit.
- The radio signal received by the antenna rod is input to the antenna base and the antenna signal is amplified and sent to the AV control unit.





- Receives satellite radio waves and outputs it to AV control unit.

Antenna circuit
