Base Audio and Navigation




COMPONENT PARTS

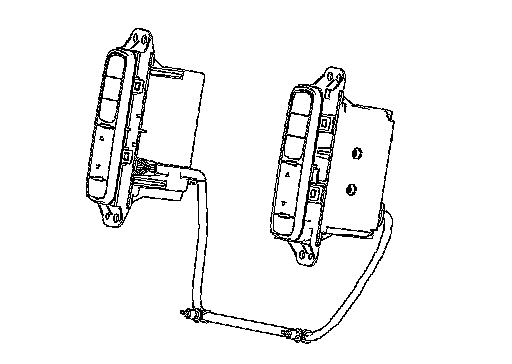

Multifunction Switch





- Audio, navigation, Telematics, etc. can be controlled.
- Switch operation signals are input to the AV control unit via AV
communication.
