System Diagram




SYSTEM

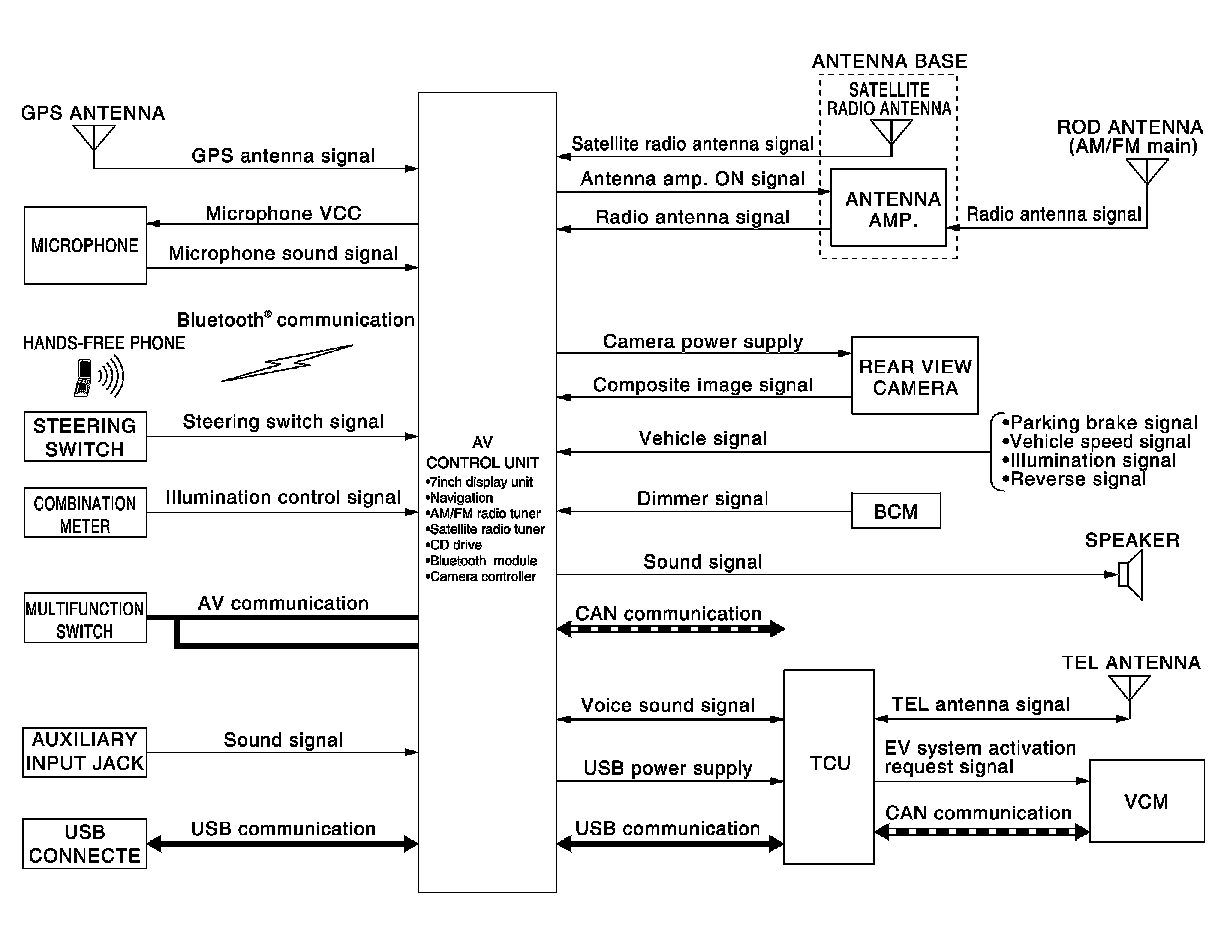

MULTI AV SYSTEM : System Diagram







CAN communication

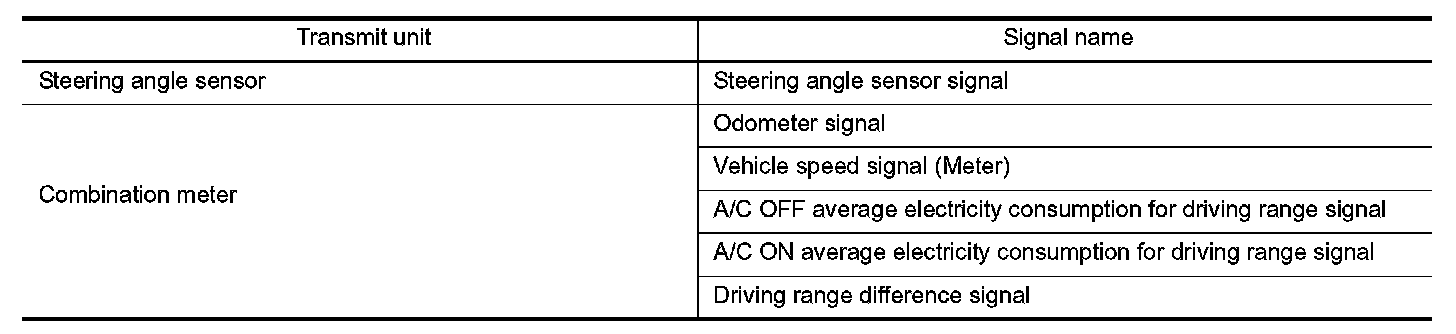

AV control unit Input Signal

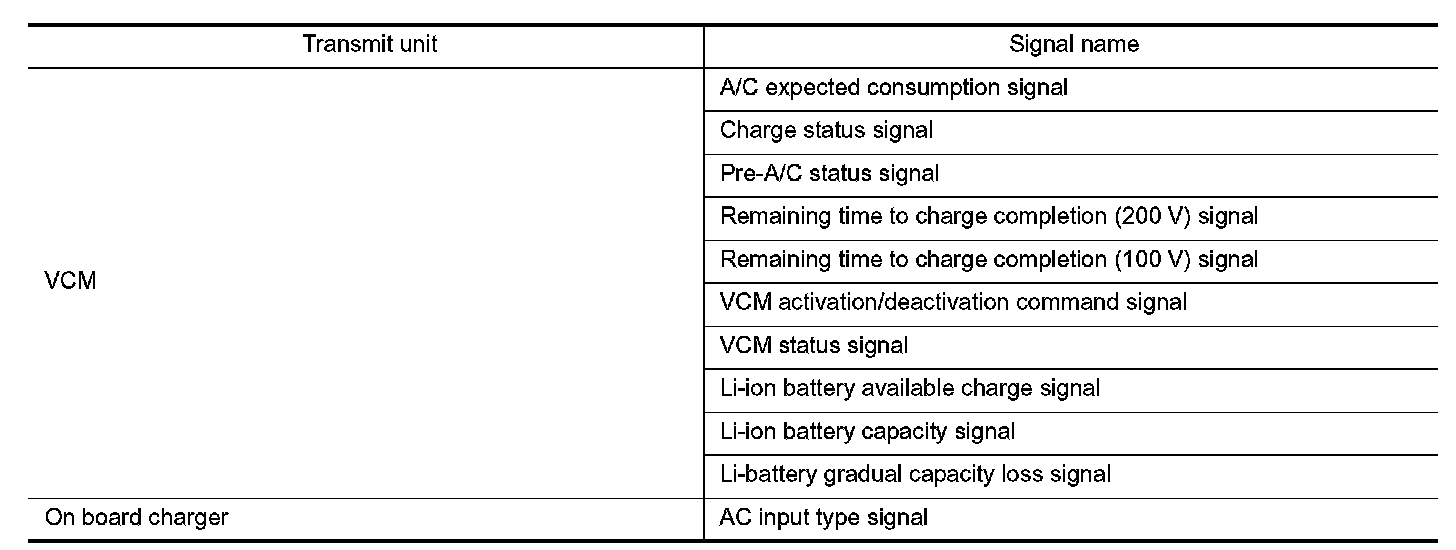

TCU Input Signal
