Power Switch

POWER SWITCH

Removal and Installation


REMOVAL

1.Remove the NATS antenna amp. Refer to "Removal and Installation" Service and Repair.

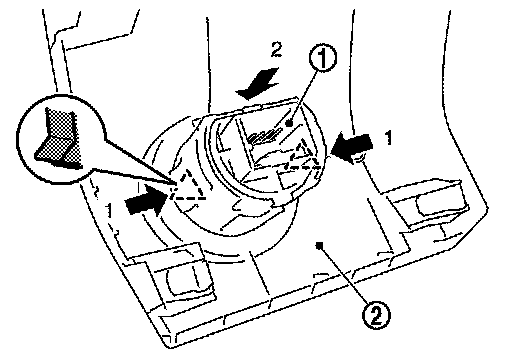

2.Remove the power switch (1).





1.Disengage the power switch fixing pawls.
2.Press the power switch to remove it from cluster lid A (2).


INSTALLATION

Install in the reverse order of removal.
