B2782

B2782 ELECTRIC COMPRESSOR

DTC Logic

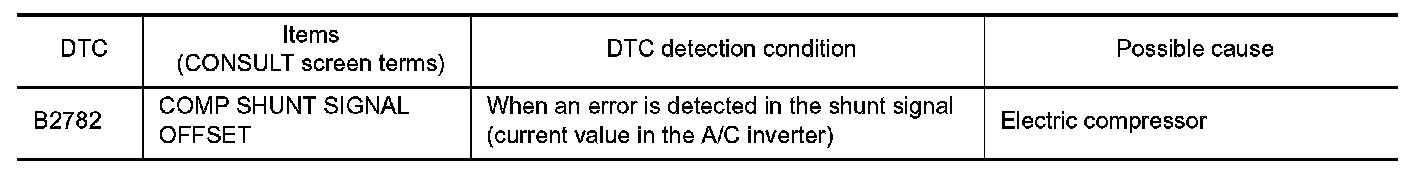

DTC DETECTION LOGIC







DTC CONFIRMATION PROCEDURE


1. PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT
1.Turn power switch OFF.
2.Set the vehicle to READY.
3.Operate the automatic air conditioning system.
4.Set the temperature to full cold and wait at least 2 seconds.
5.Select "Self Diagnostic Result" mode of "HVAC" using CONSULT.
6.Check DTC.
Is DTC detected?
YES- Refer to "Diagnosis Procedure" .
NO- INSPECTION END


Diagnosis Procedure


1. REPLACE ELECTRIC COMPRESSOR

Replace electric compressor. Refer to "Removal and Installation" Removal And Installation.
- INSPECTION END
