Front Wiper Arm





FRONT WIPER ARM


Adjustment

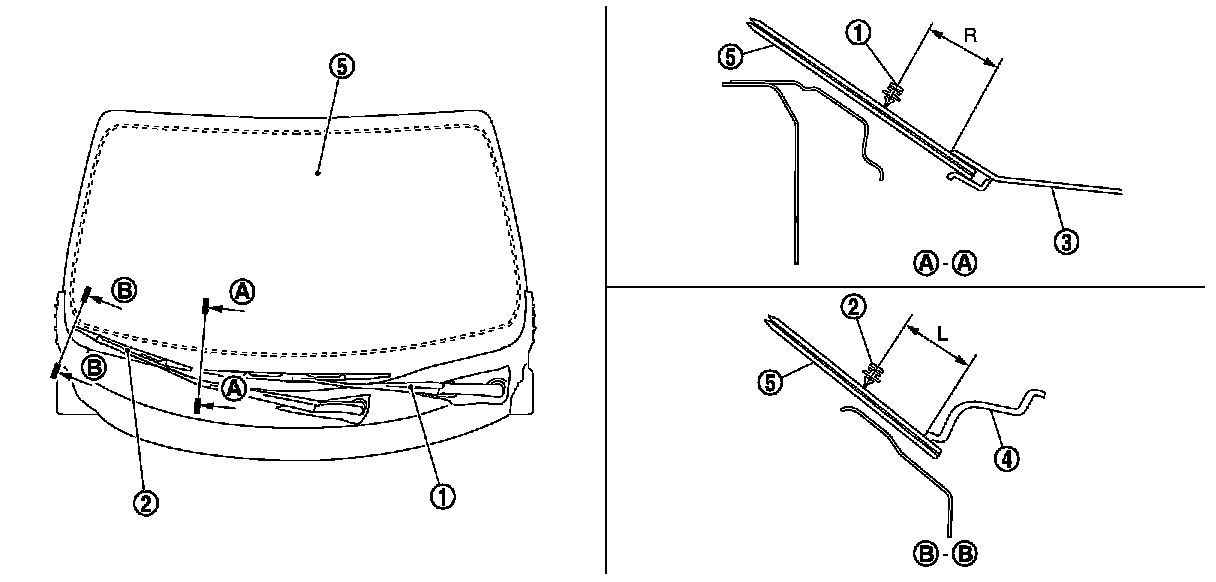

WIPER BLADE POSITION ADJUSTMENT

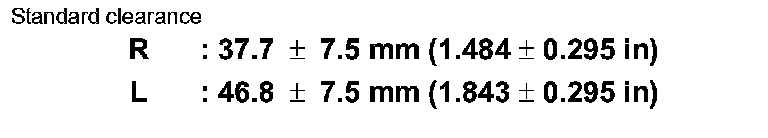

Clearance between the end of cowl top cover/ front fender protector and the top of wiper blade center
