Rear Washer Nozzle And Tube

REAR WASHER NOZZLE AND TUBE


Removal and Installation


REMOVAL
1. Remove luggage side upper finisher RH. Luggage Side Upper Finisher.




Broken Triangle : Clip

2. Disconnect rear washer tube (2) fixing clip and then remove rear washer tube joint (2) from rear washer tube.

3. Fully open back door.

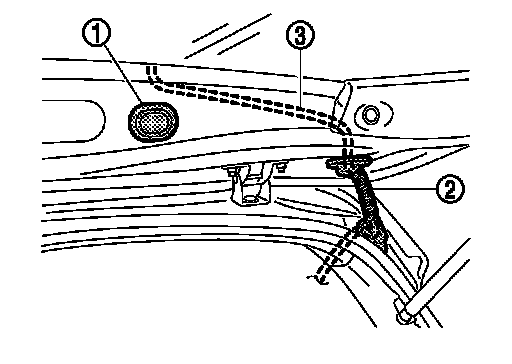

4. Remove back door seal rubber (2), and then remove rear washer tube (3) from back door seal rubber.
5. Remove plug (1).

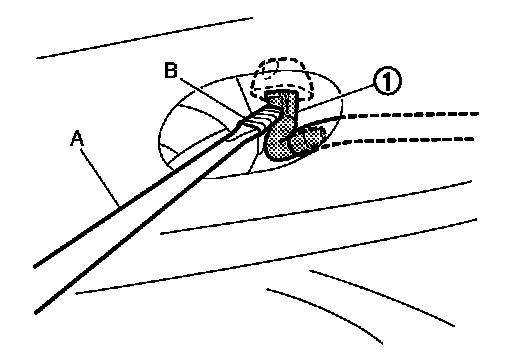

6. Disengage rear washer nozzle (1) fixing pawl with a flat-bladed screwdriver (A) and remove the rear washer nozzle.

CAUTION:
Wrap the flat-bladed screwdriver into a protective tape (B) to protect the part from damage.
7. Remove rear washer nozzle from the rear washer tube.

INSTALLATION
Install in the reverse order of removal.
