Removal And Installation

WASHER TANK


Removal and Installation


REMOVAL
1. Fully open hood.

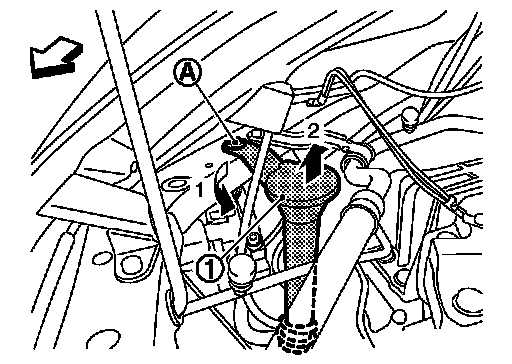

White Arrow Indicates : Vehicle front

2. Remove washer tank inlet fixing clip (A).
3. Pull out washer tank inlet (1) from washer tank.

4. Remove fender protector RH (front). Removal And Installation.
5. Disconnect washer pump connector.
6. Disconnect washer level switch connector (Canada models only).
7. Disconnect front washer tube and rear washer tube.
8. Remove washer tank mounting bolts.

INSTALLATION
Note the following item, and then install in the reverse order of removal.

CAUTION:
Add water up to the top of washer tank inlet after installing and check that there is no leakage.
