Front Wiper Motor Lo Circuit

FRONT WIPER MOTOR LO CIRCUIT





Component Function Check
1.CHECK FRONT WIPER LO OPERATION

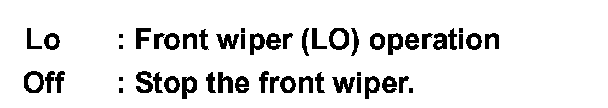

CONSULT-III ACTIVE TEST
1. Select "FRONT WIPER" of IPDM E/R active test item.
2. With operating the test item, check front wiper operation.






Is front wiper (LO) operation normally?
YES - Front wiper motor LO circuit is normal.
NO - SEE Diagnosis Procedure.




Diagnosis Procedure
1.CHECK FRONT WIPER MOTOR (LO) OUTPUT VOLTAGE
CONSULT-III ACTIVE TEST
1. Turn ignition switch OFF.
2. Disconnect front wiper motor connector.
3. Turn ignition switch ON.
4. Select "FRONT WIPER" of IPDM E/R active test item.

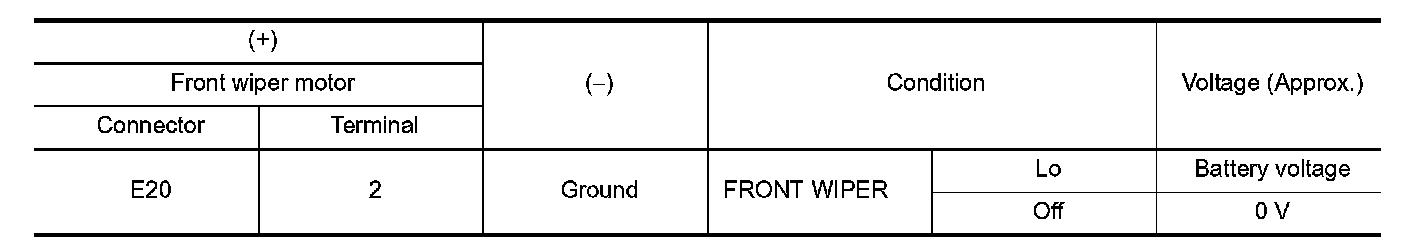

5. With operating the test item, check voltage between front wiper motor harness connector and ground.





Is the inspection result normal?
YES - Replace front wiper motor.
NO - GO TO 2.
2.CHECK FRONT WIPER MOTOR (LO) CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.

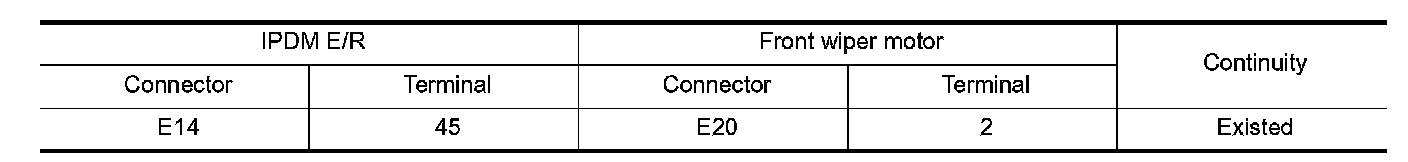

3. Check continuity between IPDM E/R harness connector and front wiper motor harness connector.

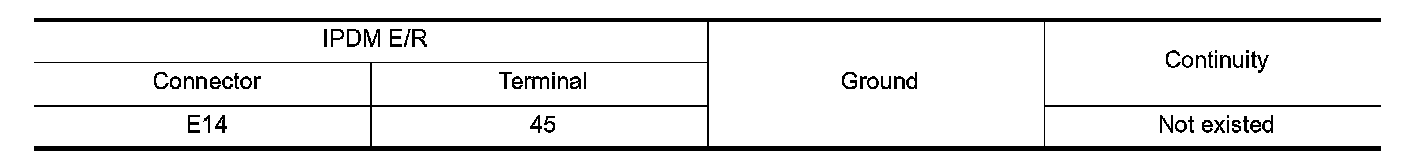

4. Check continuity between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES - Replace IPDM E/R.
NO - Repair or replace harness.
