Washer Switch





COMPONENT PARTS


Washer Switch

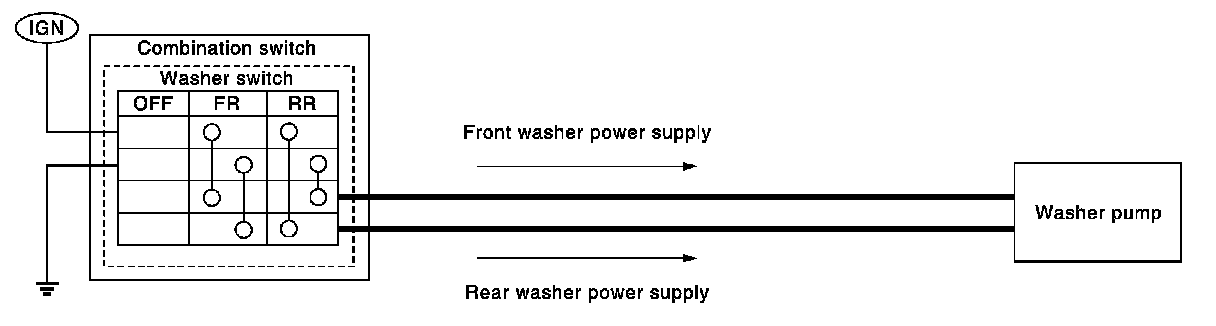

- Washer switch is integrated with combination switch.
- Combination switch switches polarity between front washer operating and rear washer operating to supply power to the washer pump on ground.
