Power Window Switch: Service and Repair

POWER WINDOW MAIN SWITCH


Removal and Installation


REMOVAL
1. Remove power window main switch finisher. Removal And Installation.

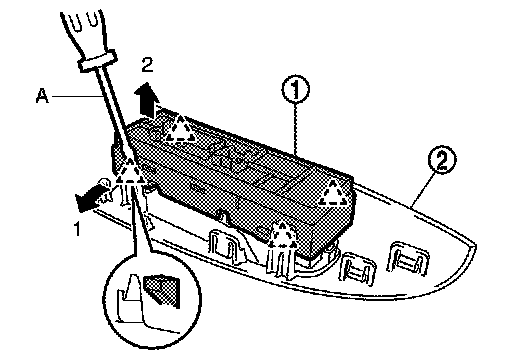

Broken Triangle : Pawl

2. Remove power window main switch (1) from power window main switch finisher (2) using flat-head screw driver (A).

CAUTION:
Do not fold the pawl of power window main switch finisher.

NOTE:
The same procedure is also performed for front power window switch (passenger side) and rear power window switch (LH & RH).

INSTALLATION
Install in the reverse order of removal.

NOTE:
If power window main switch is replaced or is removed, it is necessary to perform the initialization procedure. Work Procedure.
