Back-Up Lamp Switch

POSITION SWITCH


BACK-UP LAMP SWITCH BACK-UP LAMP SWITCH : Component Inspection

1.CHECK BACK-UP LAMP SWITCH
1. Disconnect position switch connector. Removal And Installation.

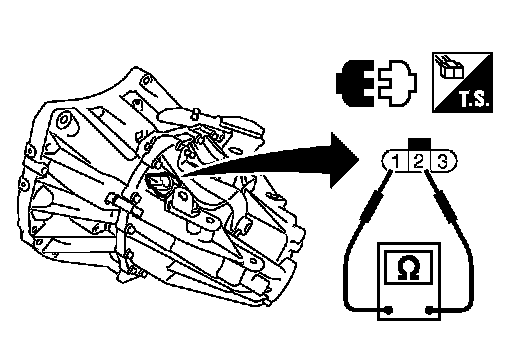

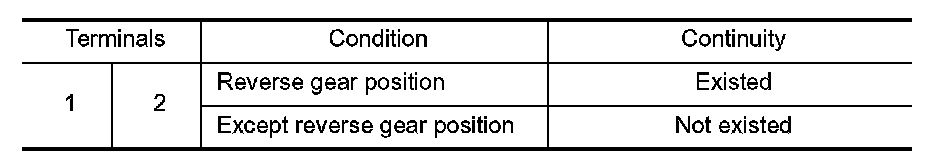

2. Check continuity between position switch terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace position switch. Removal And Installation.
