Disassembly

FINAL DRIVE


Disassembly

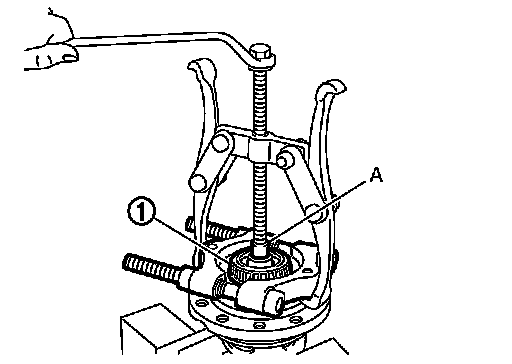

1. Remove differential side bearing inner race (clutch housing side)
(1), as per the following procedure.
a. Set a puller [Commercial service tool] to differential side bearing inner race (clutch housing side).
b. Remove differential side bearing inner race (clutch housing side), using the drift (A) [SST: ST33061000 (J-8107-2)].

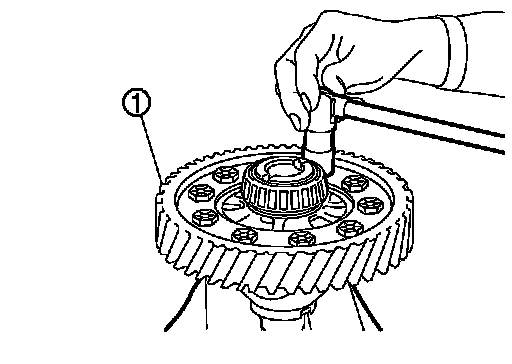

2. Remove final gear mounting bolts, and then remove final gear
(1).

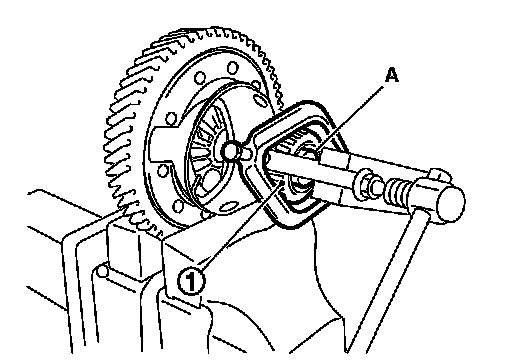

3. Remove differential side bearing inner race (transaxle case side) (1), as per the following procedure.
a. Set a puller [Commercial service tool] to differential side bearing inner race (transaxle case side).
b. Remove differential side bearing inner race (transaxle case side), using a drift (A) [Commercial service tool].
