Home >> Nissan-Datsun >> 2011 >> Juke FWD L4-1.6L Turbo (MR16DDT) >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Testing and Inspection

Differential Assembly: Testing and Inspection





NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

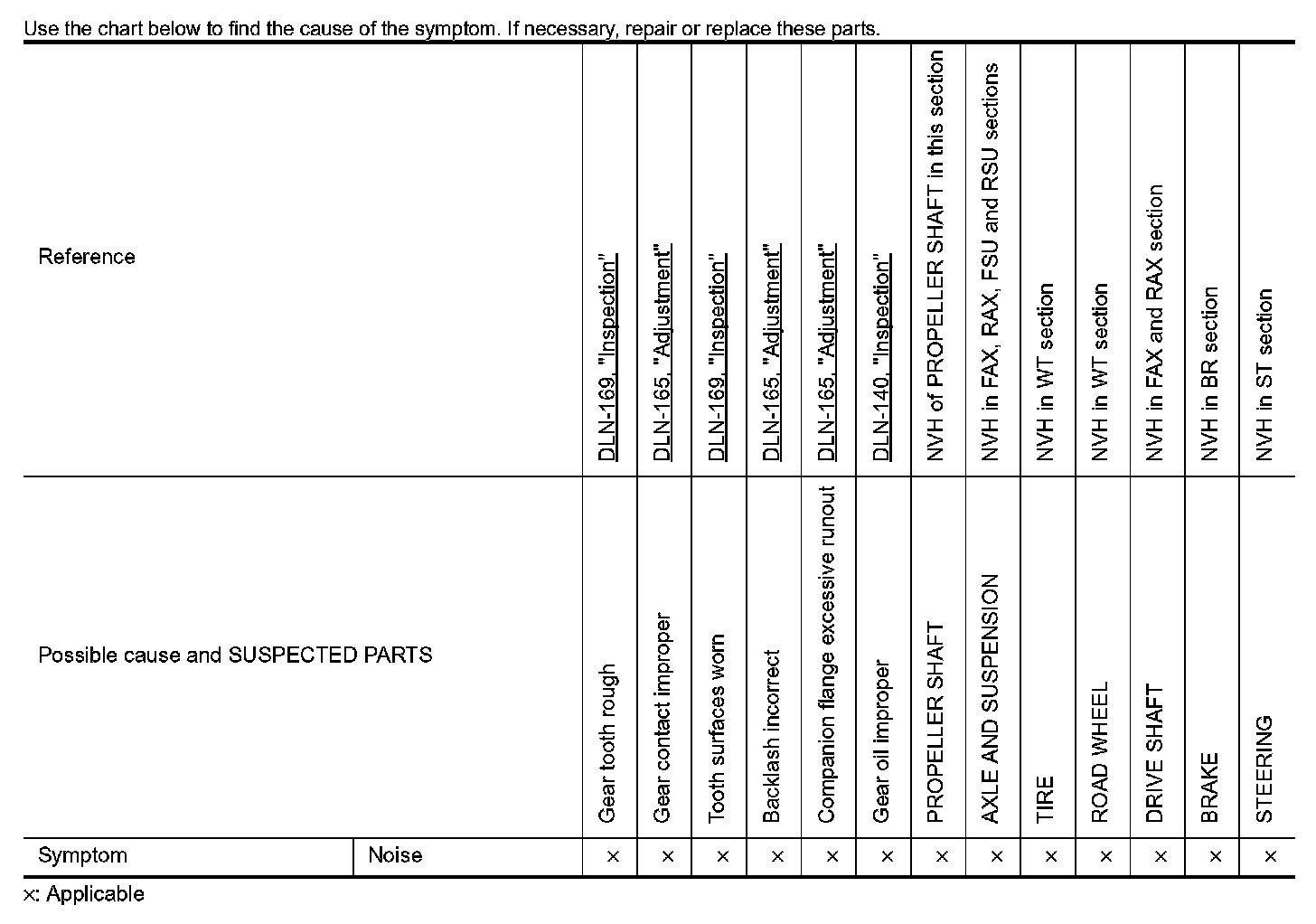

NVH Troubleshooting Chart
