Removal And Installation

OIL PUMP FITTING BOLT


Removal and Installation


REMOVAL

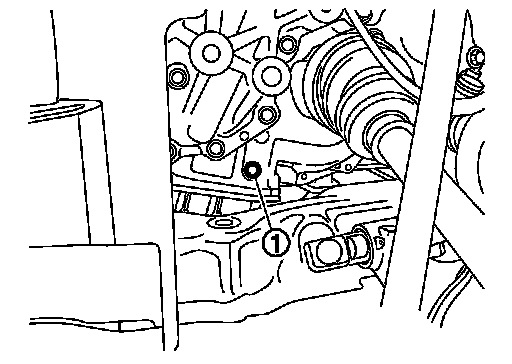

1. Remove Oil pump fitting bolt (1) from transaxle assembly.
2. Remove O-ring from oil pump fitting bolt.

INSTALLATION
Note the following, and install in the reverse order of removal.

CAUTION:
- Never reuse O-ring.
- Apply CVT fluid to O-ring.
