Inspection And Adjustment

TRANSAXLE ASSEMBLY


2WD : Inspection and Adjustment


INSPECTION BEFORE INSTALLATION

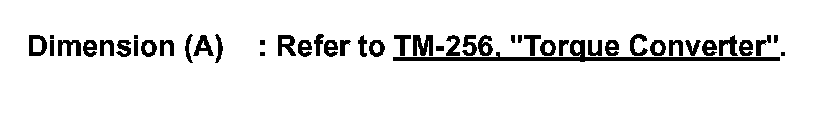

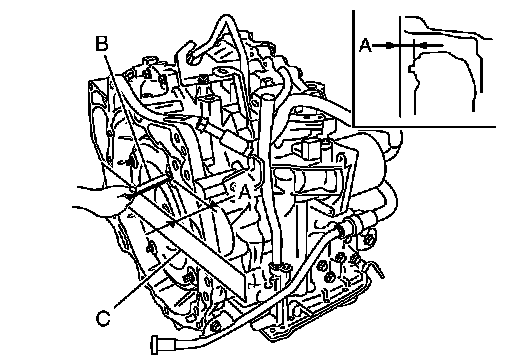

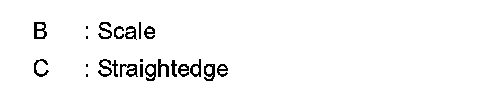

After inserting a torque converter to the CVT, check dimension (A) with in the reference value limit.






INSPECTION AFTER INSTALLATION
- Check for CVT fluid leakage and check CVT fluid level. Inspection.
- Check CVT position. Adjustments.
- Start and warm up the engine. Visually check that there is no leakage of engine coolant and CVT fluid.

ADJUSTMENT AFTER INSTALLATION
Perform "ADDITIONAL SERVICE WHEN REPLACE CONTROL VALVE OR TRANSAXLE ASSEMBLY". Description.
