Install Seal C (Part of Kit H0530-89900 Only)

Install Seal C (part of kit H0530-89900 only)

^ Seal size (12 mm x 13 mm x 50 mm)





NOTE:

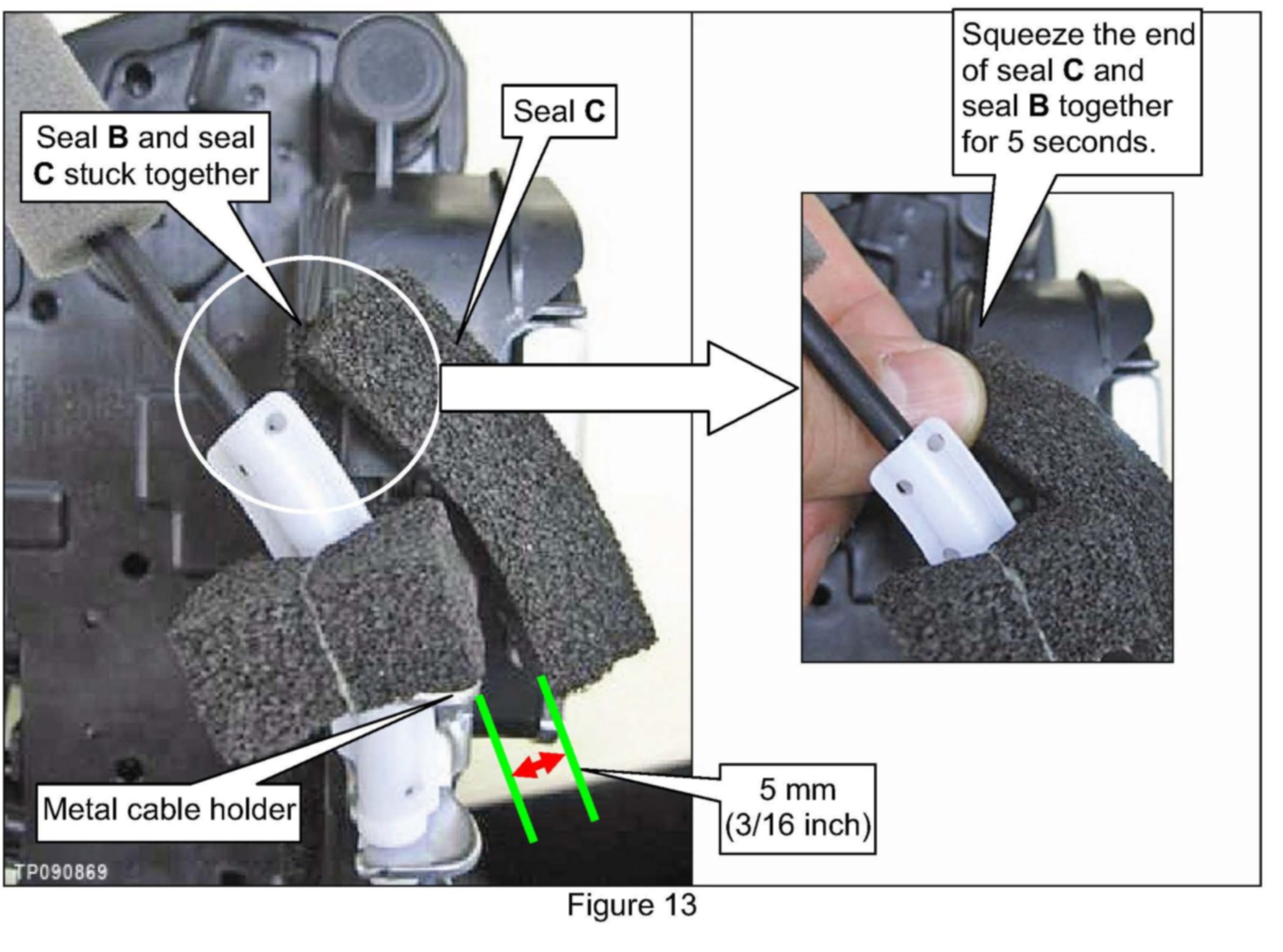

Before beginning, it is recommended that you read all of seal C's installation steps (a through d) and examine Figure 13.

1. Apply EPT seal C as follows:

a. Remove the adhesive backing from seal C.

b. Apply the seal as shown.

c. Attach one end so it is 5 mm (3/16 inch) away from the metal cable holder.

d. Attach the corner of seal C to seal B as shown.

IMPORTANT: Squeeze seal C and seal B together as shown. Make sure they are securely stuck together.
