Install Seal B (Part of Kit H0530-89900 Only)

Install Seal "B" (part of kit H0530-89900 only)

^ Seal size (5 mm x 5 mm x 95 mm) - from the seal kit.





NOTE:

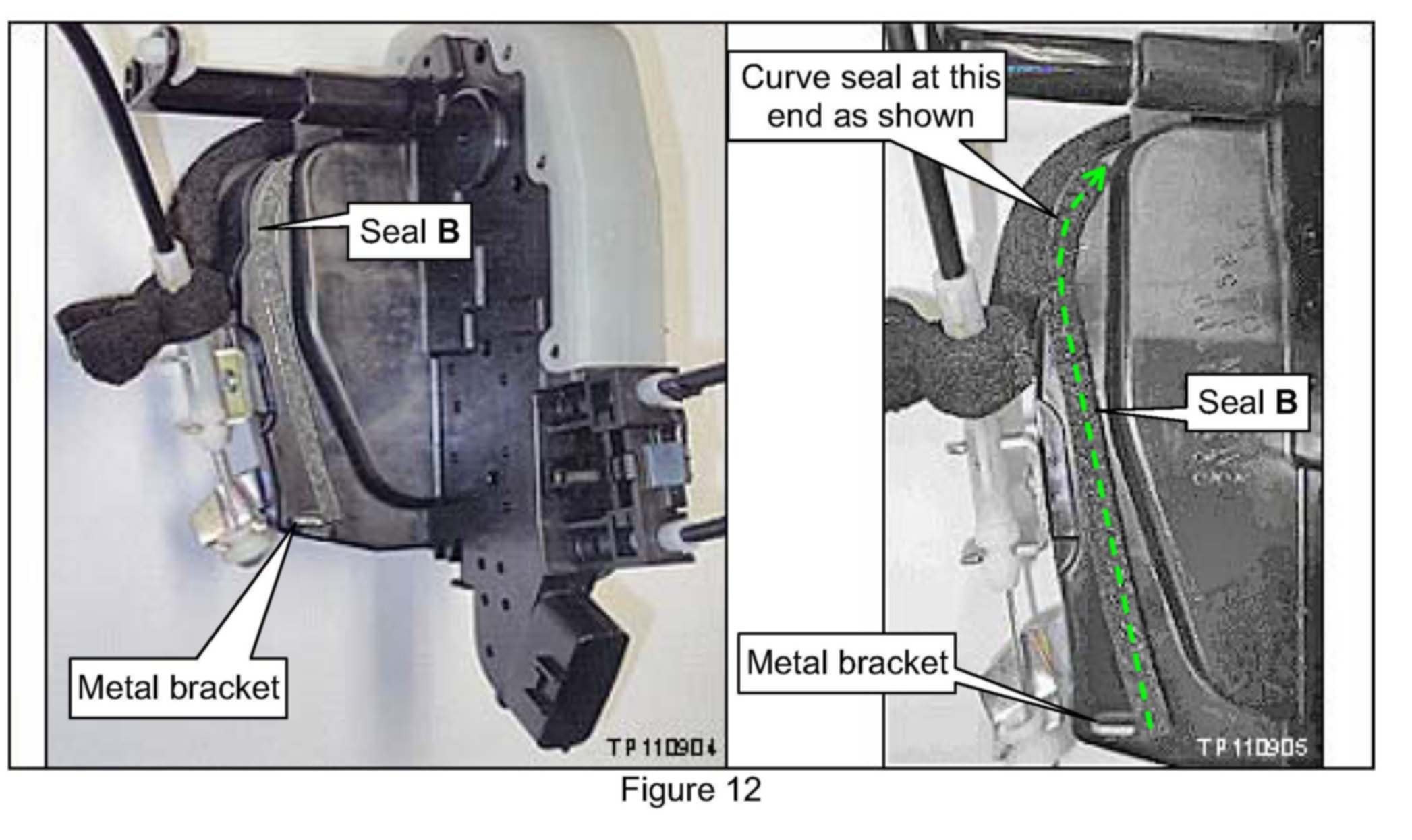

Before beginning, it is recommend that you read all of seal B's installation steps (1a through 1c) and examine Figure 12.

1. Apply EPT seal B as follows:

a. Remove the self adhesive backing from seal B.

b. Start application of the seal at the metal bracket.

c. At the opposite end of the seal, curve (bend) the seal slightly to match the curve of the lock assembly.
