Removal And Installation

COIL SPRING


Removal and Installation


REMOVAL
1. Remove tires with power tool. Removal And Installation.





2. Set jack under rear suspension beam.

CAUTION:
- Never damage the suspension beam with a jack.
- Check the stable condition when using a jack.

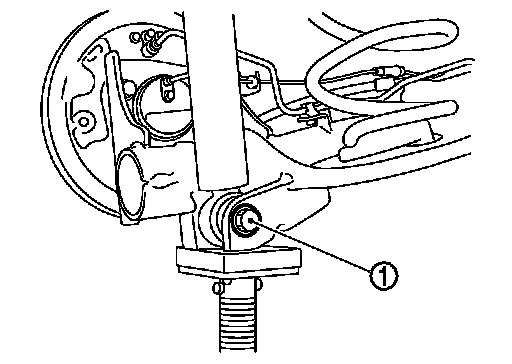

3. Remove rear shock absorber mounting bolts (lower side). Exploded View.
4. Slowly lower jack, then remove upper rubber seat, coil spring and lower rubber seat from rear suspension beam.

CAUTION:
Operate while checking that jack supporting status is stable.
5. Perform inspection after removal. Inspection.

INSTALLATION
Note the following, and install in the reverse order of removal.

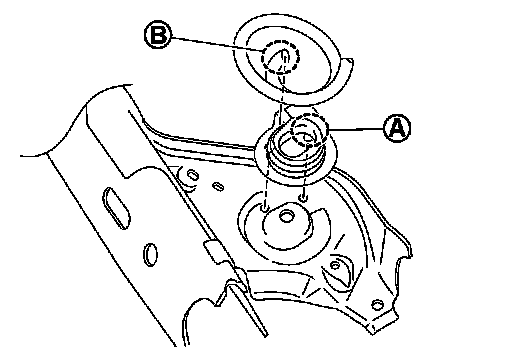

- Install lower rubber seat with its protrusion (A) on the lower area aligned with the hole of rear suspension beam.





- Securely install coil spring with the lower end of the major diameter aligned with the steps of lower rubber seat.
- Perform inspection after installation. Inspection.
