Diagnostic Work Sheet

DIAGNOSIS AND REPAIR WORK FLOW


Diagnostic Work Sheet


Description
- In general, customers have their own criteria for a problem. Therefore, it is important to understand the symptom and status well enough by asking the customer about his/her concerns carefully. To systemize all the information for the diagnosis, prepare the interview sheet referring to the interview points.
- In some cases, multiple conditions that appear simultaneously may cause a DTC to be detected.

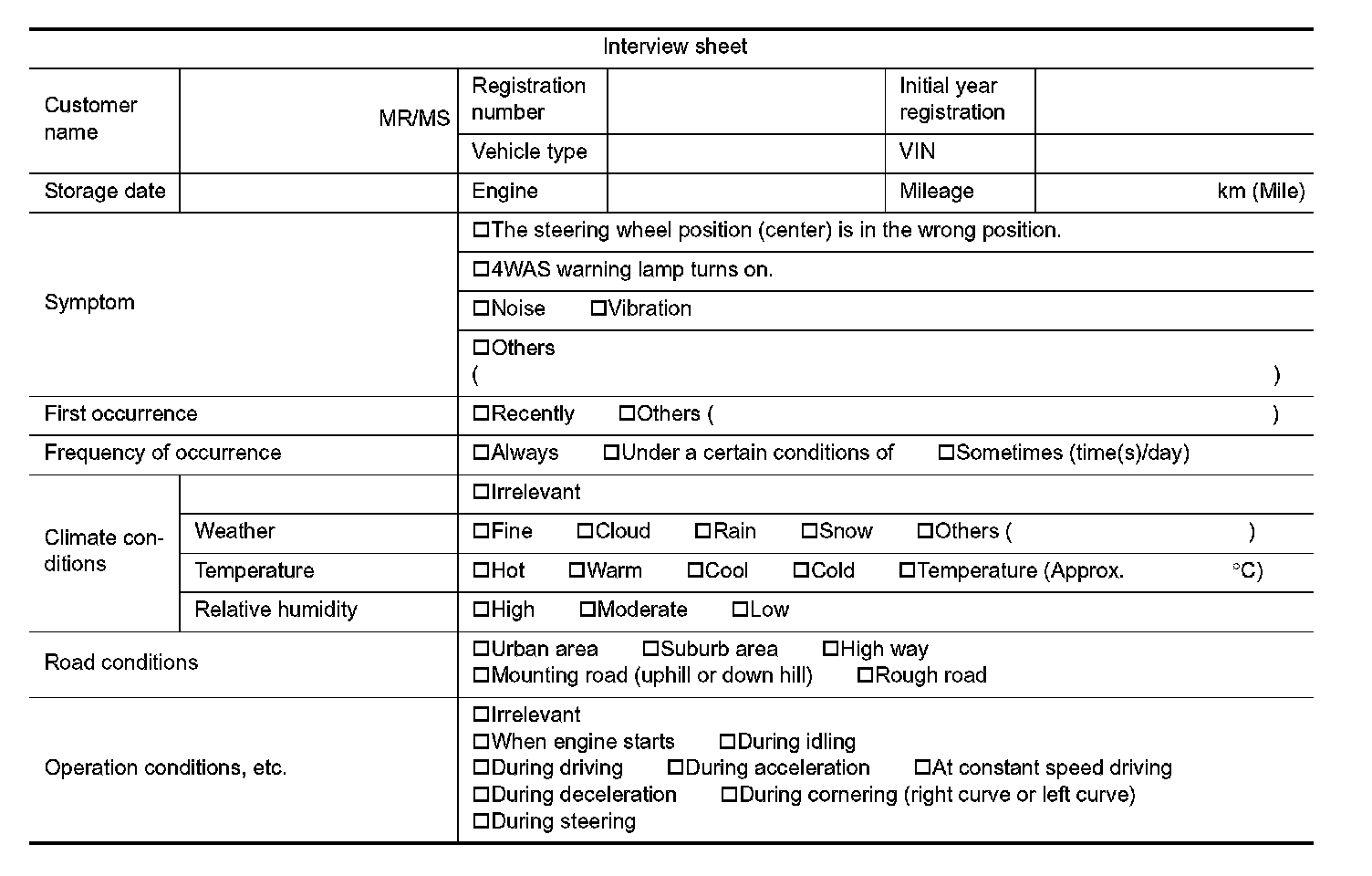

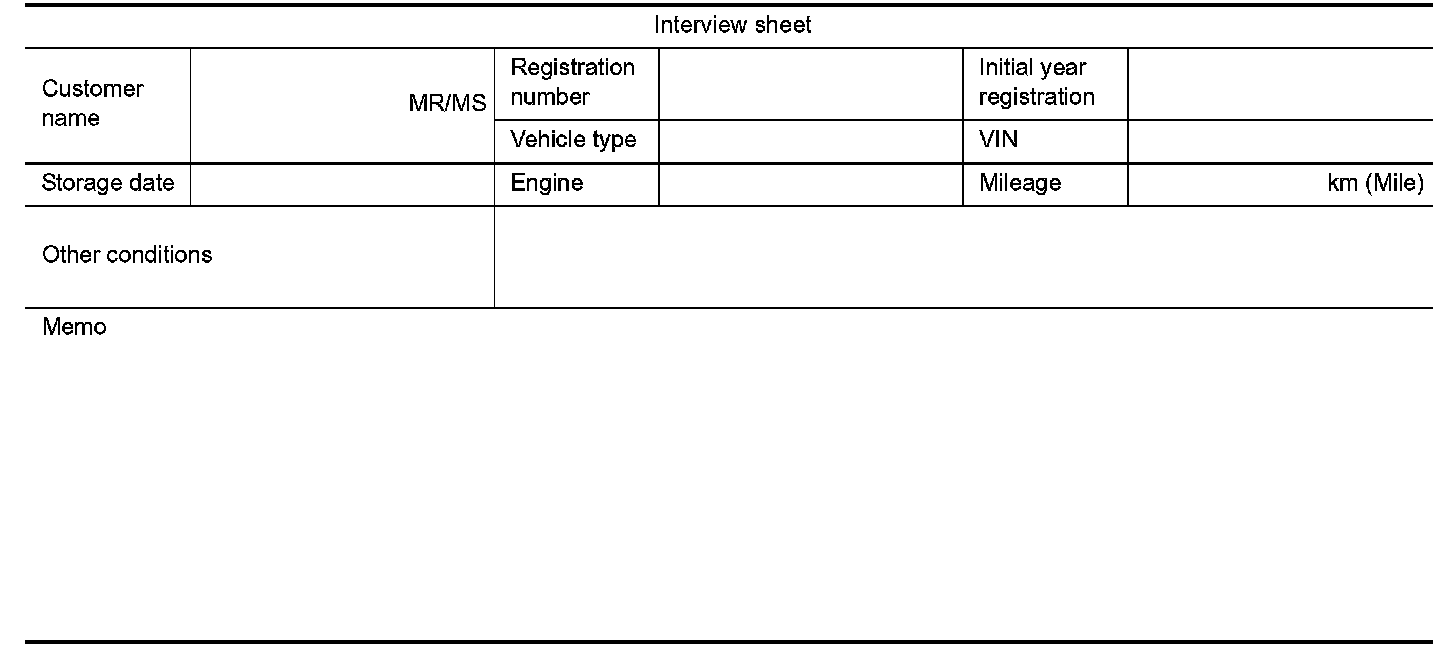

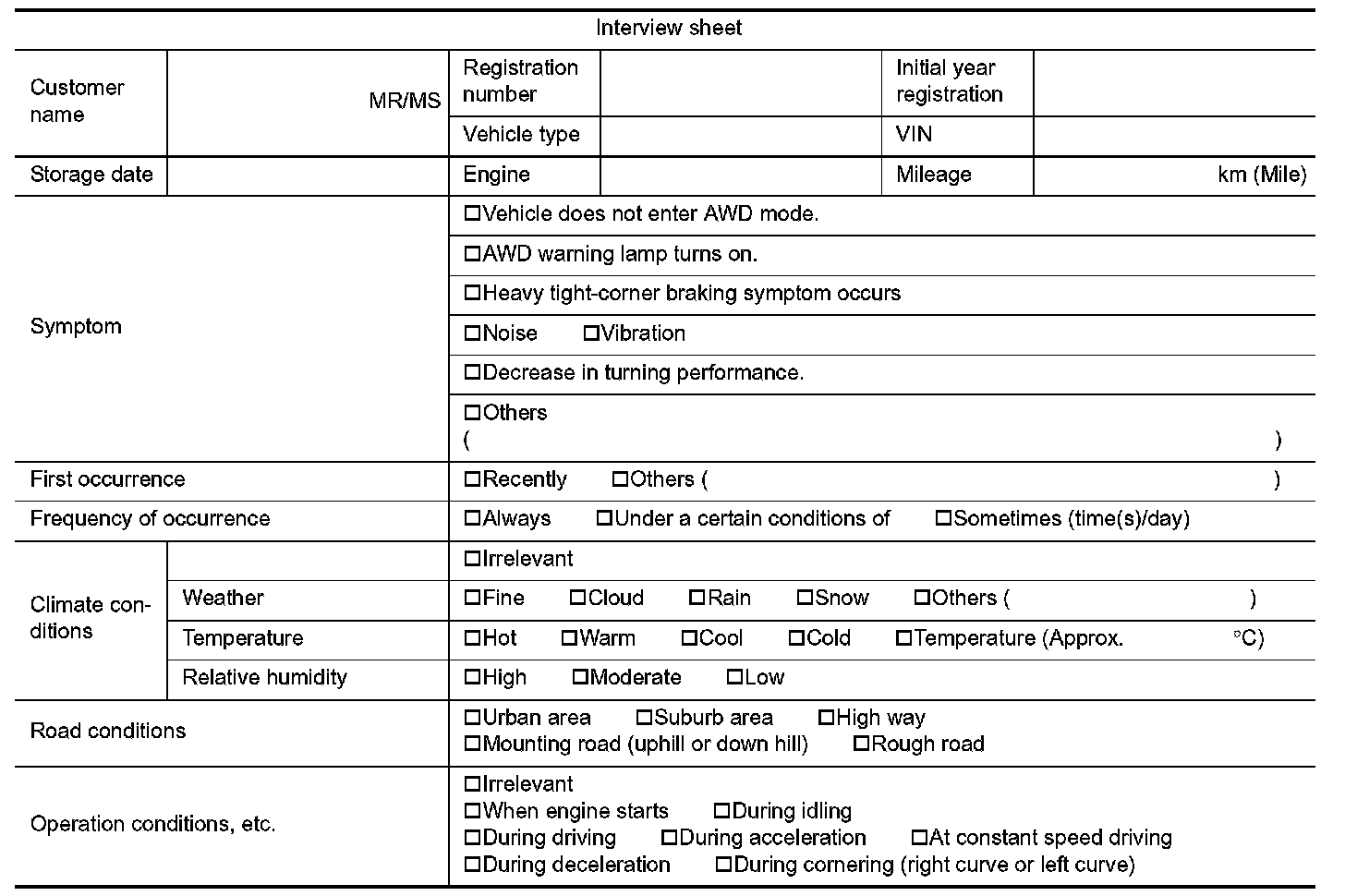

Interview sheet sample
