Removal And Installation

STEERING WHEEL


Removal and Installation


REMOVAL

NOTE:
When reconnecting spiral cable, fix cable with a tape so that fixing case and rotating part keep aligned. This will omit neutral position alignment procedure during spiral cable installation.
1. Set vehicle to the straight-ahead position.
2. Remove driver air bag module. Removal And Installation.
3. Remove steering wheel lock nut after steering is locked.

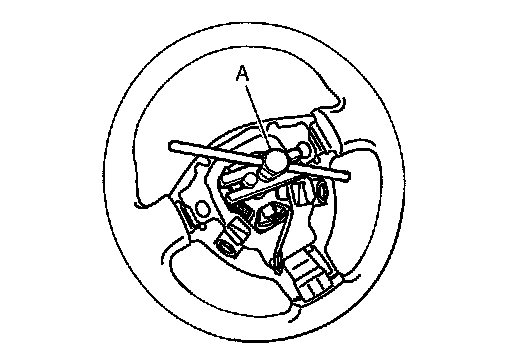

4. Remove steering wheel with the steering wheel puller (A) [SST:
ST27180001 (J-25726-A)].

INSTALLATION
Note the following, and install in the reverse order of removal.
- Check the spiral cable neutral position after replacing or rotating spiral cable. Removal And Installation.

CAUTION:
Never twist spiral cable excessively after it becomes tight. (Twisting may cause the cable to be torn off.)
- Never reuse steering wheel lock nut.
