Alignment: Specifications




Wheel Alignment Specifications

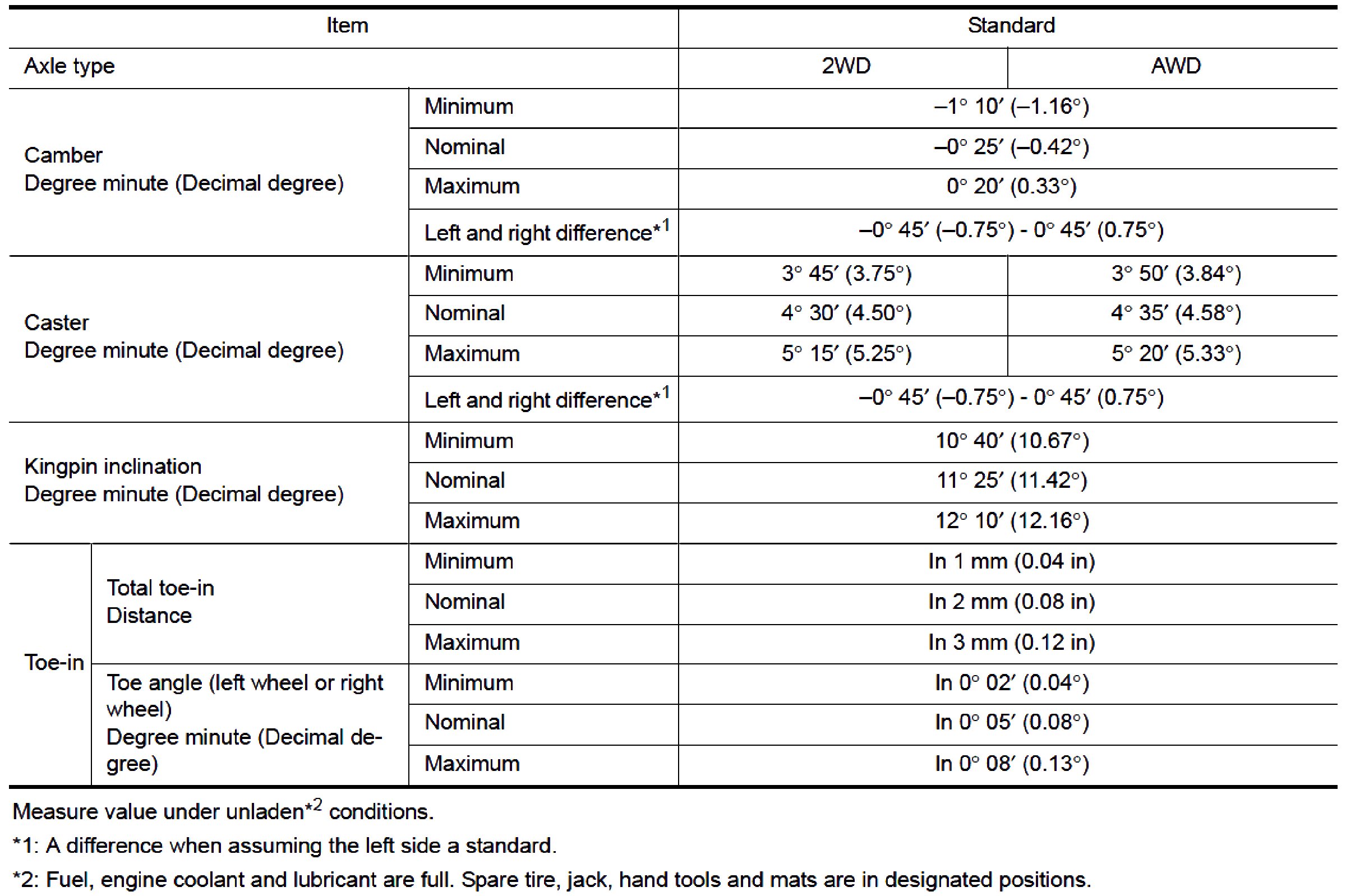

Front - USA Models:

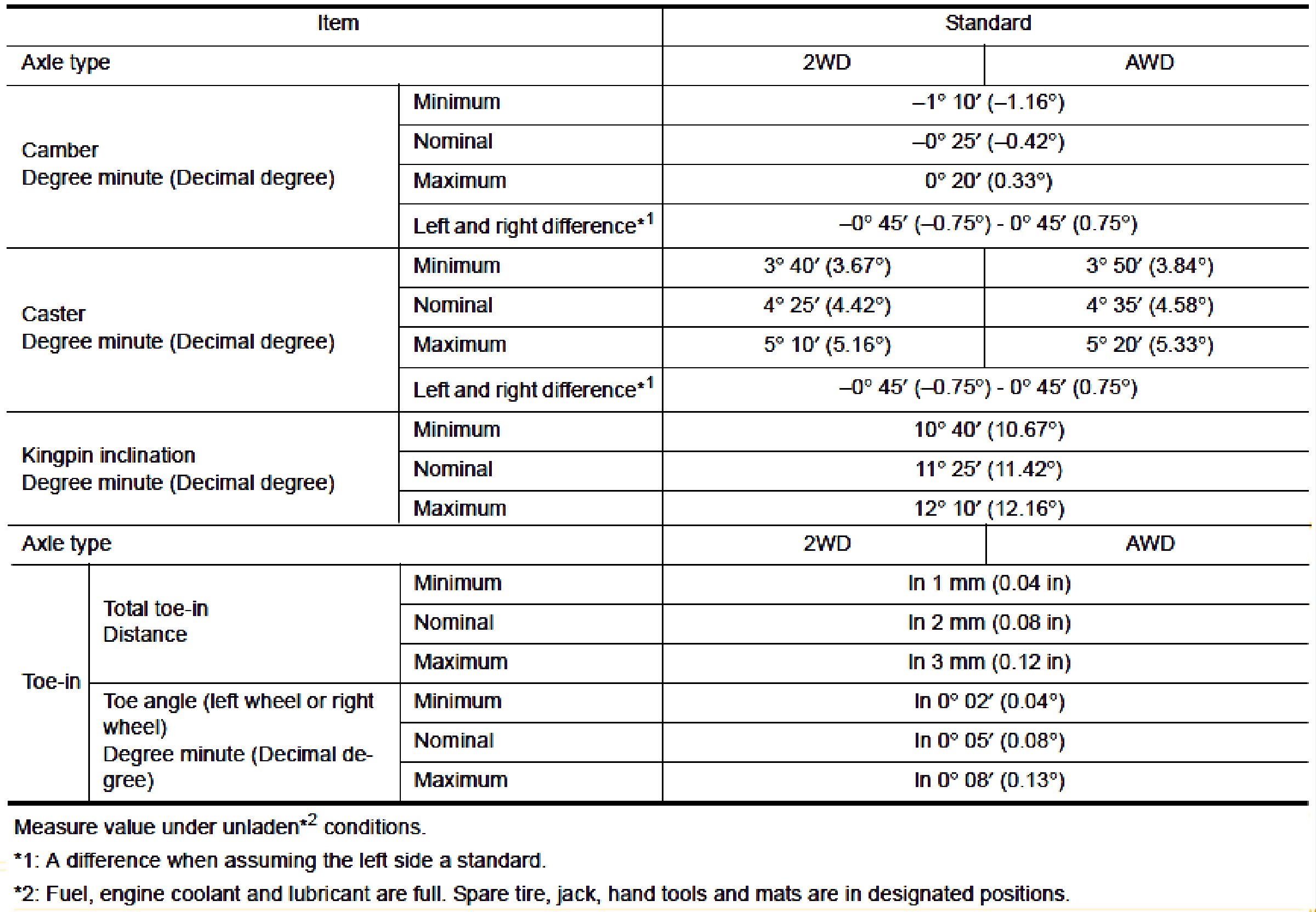

Front - Canada Models:

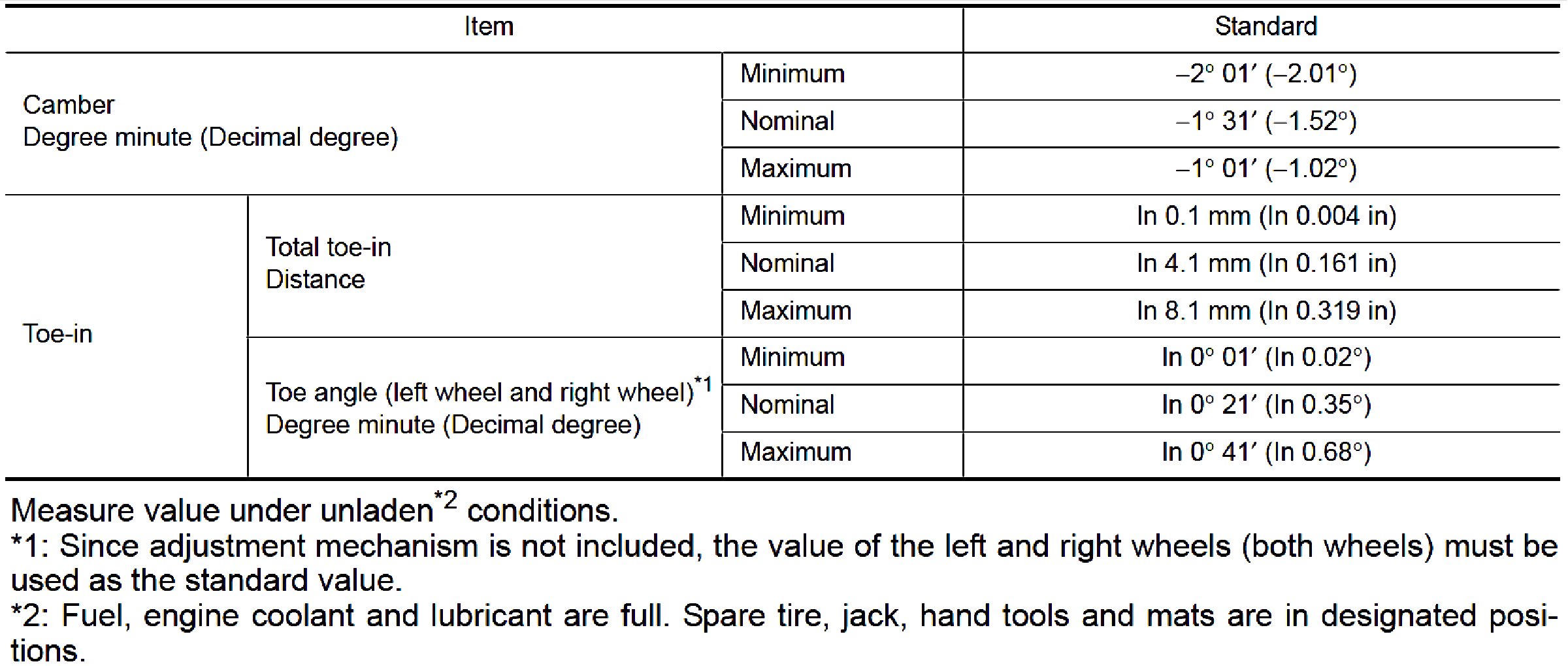

Rear - USA Models:

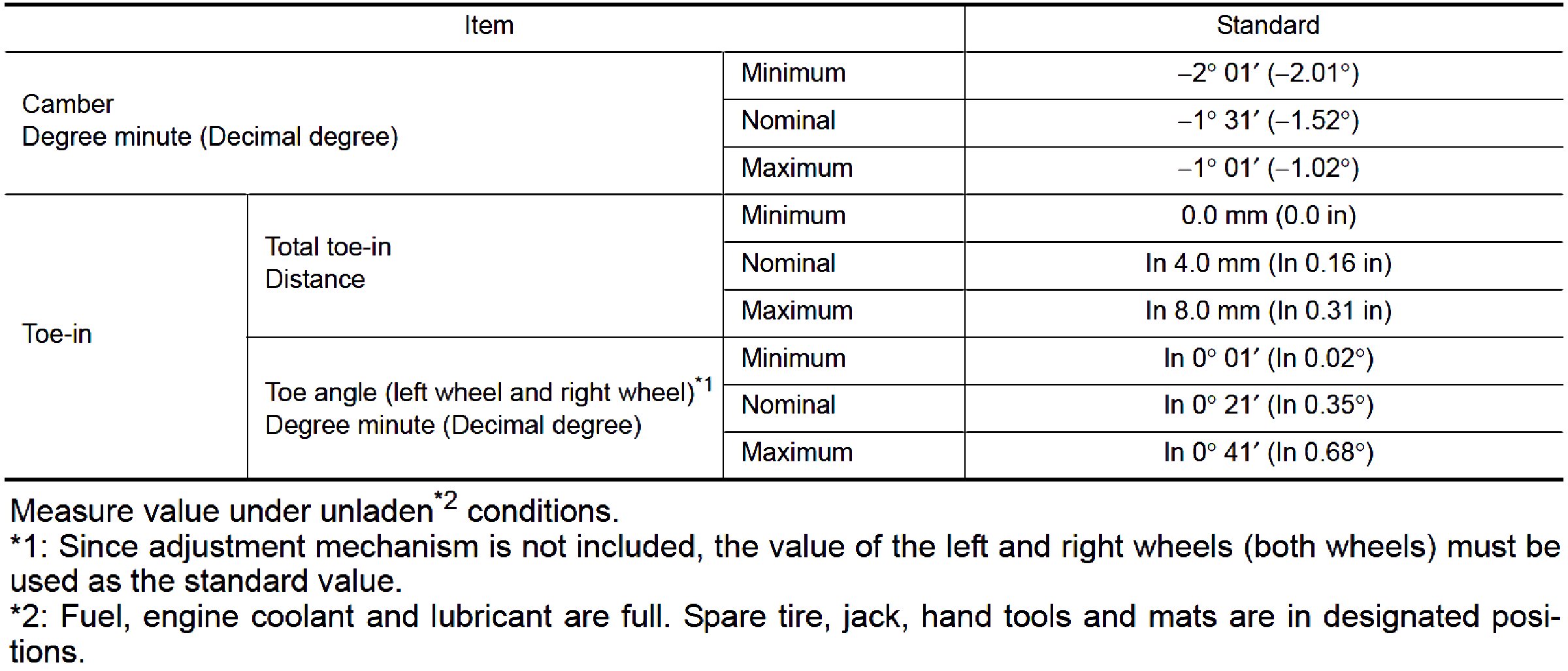

Rear - Canada Models:

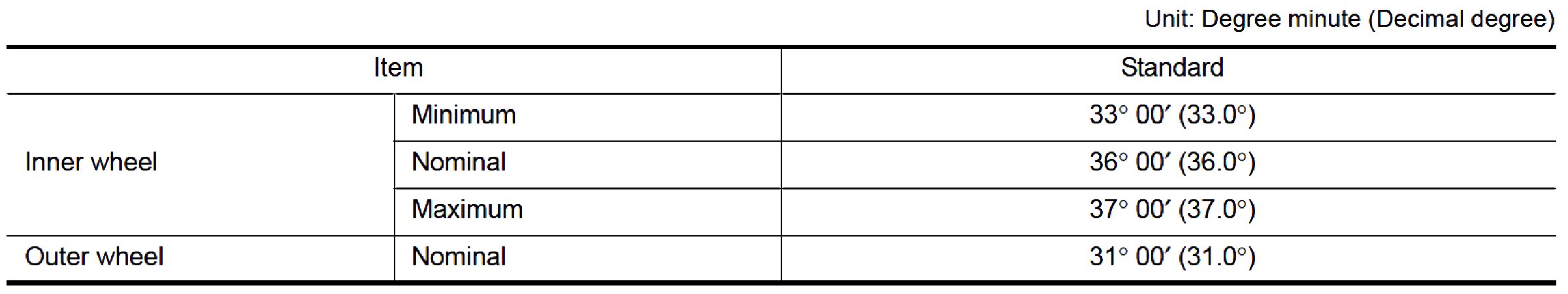

Steering Angle:





Wheelarch Height:
