Start / Stop Switch: Service and Repair

PUSH-BUTTON IGNITION SWITCH


Removal and Installation


REMOVAL
1. Remove the NATS antenna amp. Removal And Installation.
2. Remove the push-button ignition switch.

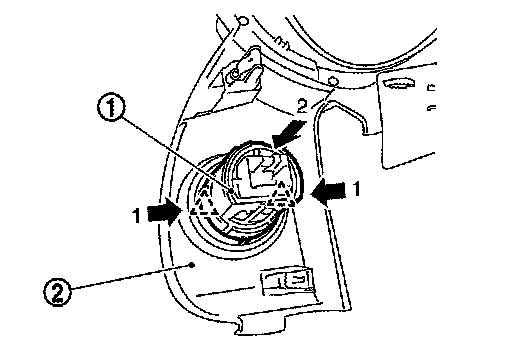

Broken Triangle : Pawl

1. Disengage the push-button ignition switch (1) fixing pawls using minus driver etc.
2. Press the push-button ignition switch to remove it from cluster lid A (2).

INSTALLATION
Install in the reverse order of removal.
