Exploded View





WHEEL SENSOR

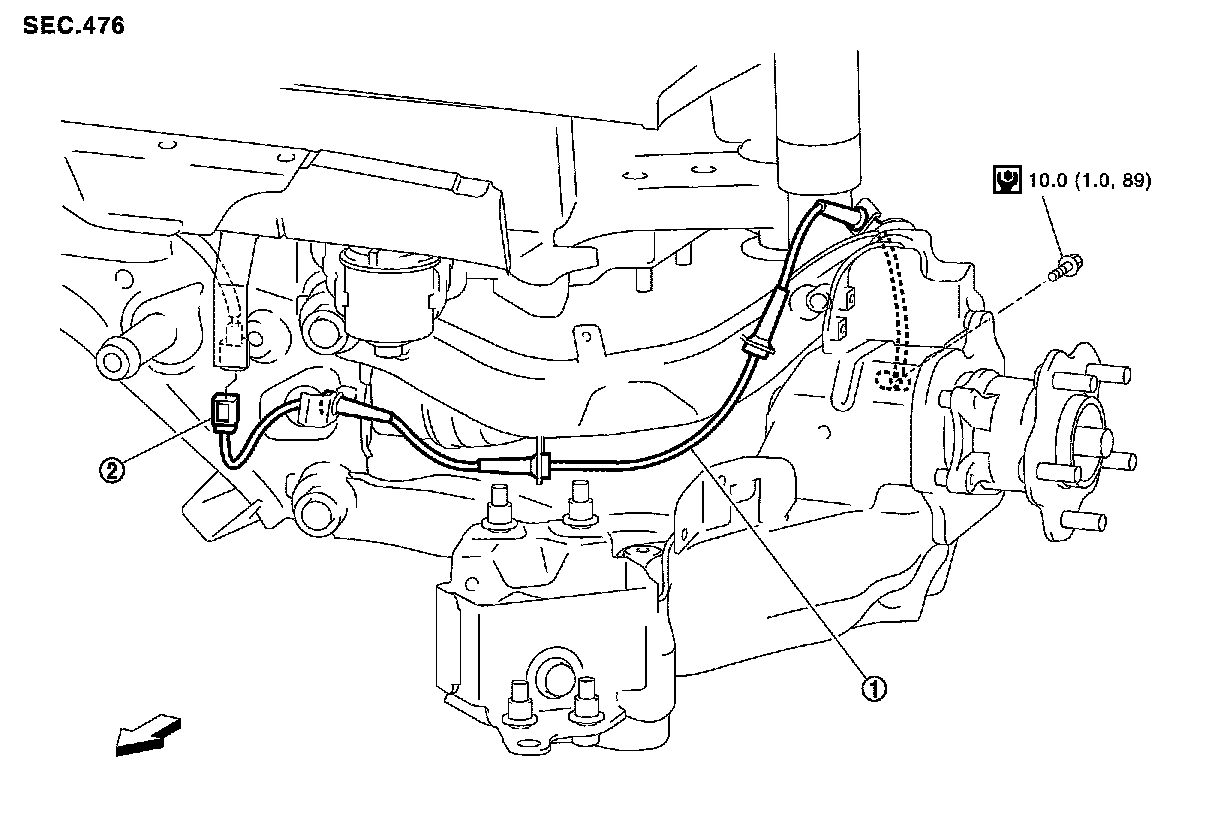

REAR WHEEL SENSOR : Exploded View


2WD
Left side










Right side

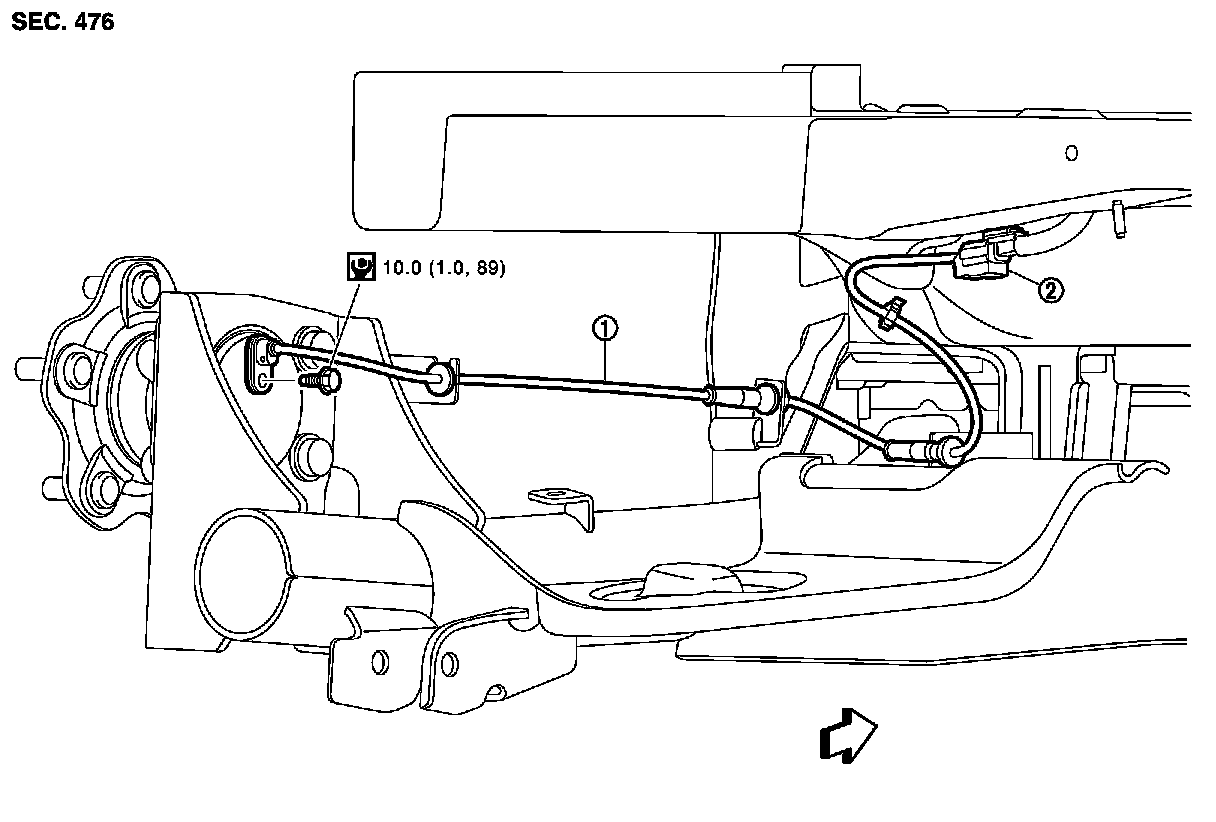

AWD











NOTE:
Rear RH wheel sensor is symmetrically opposite of LH.
