Seat Belt Hook

REAR SEAT BELT


SEAT BELT HOOK : Removal and Installation


REMOVAL
1. Remove rear seatback from the vehicle. Seatback.
2. Remove rear seat cushion from the vehicle. Seat Cushion.
3. Remove luggage side lower finisher. Luggage Side Lower Finisher.

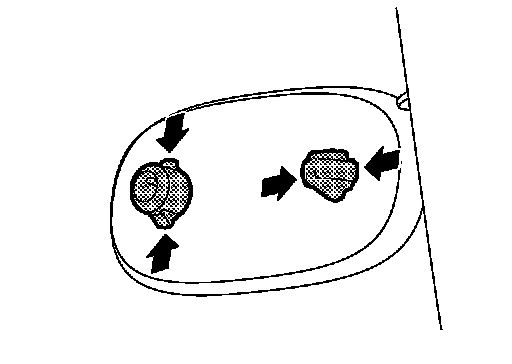

4. From back of luggage side lower finisher, press pawls indicated by arrows as shown in the figure and remove seat belt hook from luggage side lower finisher.

INSTALLATION
Install in the reverse order of removal.
