Removal And Installation

SPARK PLUG


Removal and Installation


REMOVAL
1. Remove engine cover. Exploded View.
2. Remove air inlet tube assembly. Exploded View.
3. Remove ignition coil.

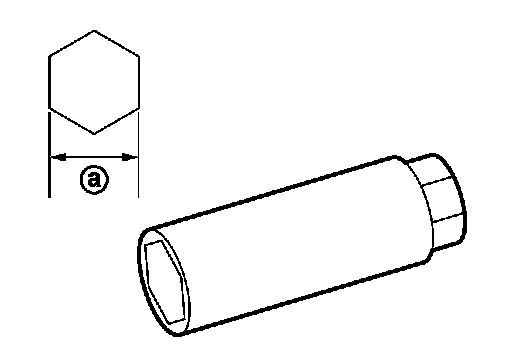

4. Remove spark plug with a spark plug wrench (commercial service tool).

CAUTION:
Never drop or shock spark plug.

INSTALLATION
Install in the reverse order of removal.
