Home >> Nissan-Datsun >> 2011 >> Juke FWD L4-1.6L Turbo (MR16DDT) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Description and Operation >> CVT RE0F10B >> Lock-Up And Select Control System Lock-Up And Select Control System

Lock-Up And Select Control System Lock-Up And Select Control System





SYSTEM

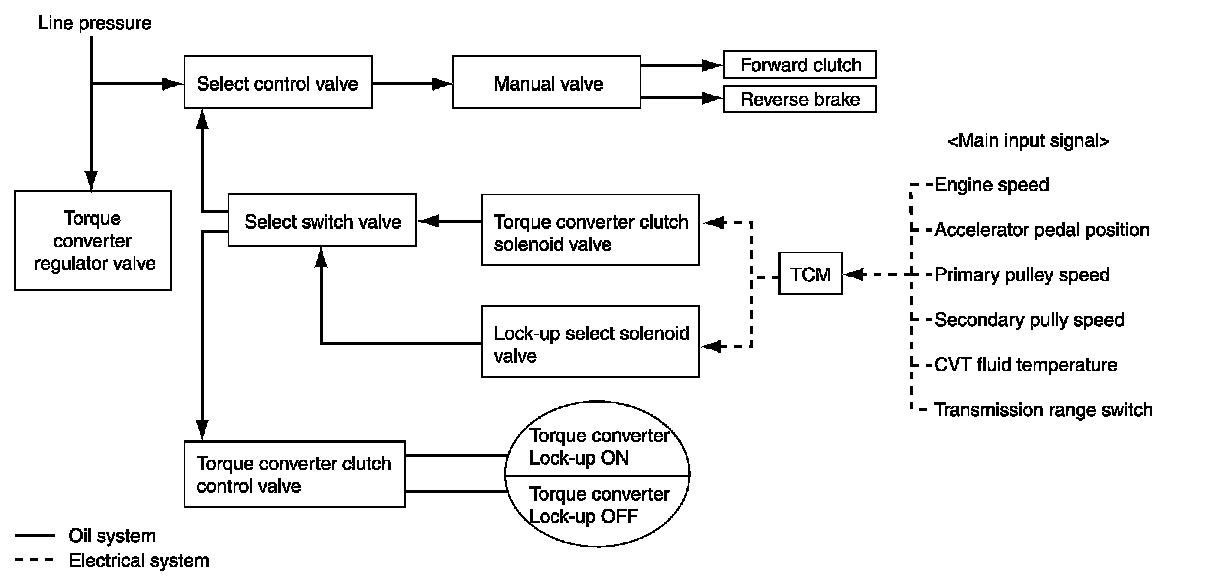

LOCK-UP AND SELECT CONTROL SYSTEM LOCK-UP AND SELECT CONTROL SYSTEM : System Diagram
